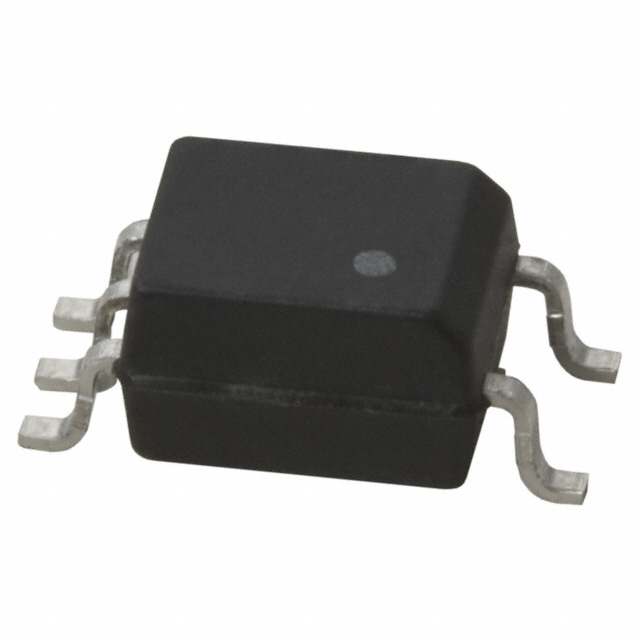

PC3SD21YXPDH

Active

SHARP/Socle Technology

OPTOISOLATOR 5KV TRIAC SMD

Search across all available documentation for this part.

Active

SHARP/Socle Technology

OPTOISOLATOR 5KV TRIAC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PC3SD21YXPDH

Approval Agency	VDE, CSA, UR
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	3.5 mA
Current - LED Trigger (Ift) (Max) [Max]	3 mA
Current - On State (It (RMS)) (Max)	100 mA
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	Triac
Package / Case	6-SMD (5 Leads), Gull Wing
Static dV/dt (Min) [Min]	1 kV/µs
Supplier Device Package	6-SMD
Turn On Time	50 µs
Voltage - Off State	600 V
Zero Crossing Circuit	True

Part	Current - On State (It (RMS)) (Max)	Supplier Device Package	Current - LED Trigger (Ift) (Max) [Max]	Output Type	Static dV/dt (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Turn On Time	Mounting Type	Current - Hold (Ih)	Voltage - Off State	Package / Case	Package / Case	Package / Case	Current - DC Forward (If) (Max)	Approval Agency	Number of Channels
SHARP/Socle Technology PC3SD21NTZAF	100 mA	6-DIP	10 mA	Triac	1 kV/µs	100 °C	-30 ░C	50 µs	Through Hole	3.5 mA	600 V	6-DIP	0.3 in	7.62 mm	50 mA	CSA UR	1
SHARP/Socle Technology PC3SD21NTZBF	100 mA	6-DIP	7 mA	Triac	1 kV/µs	100 °C	-30 ░C	50 µs	Through Hole	3.5 mA	600 V	6-DIP	0.3 in 5 Leads	7.62 mm	50 mA	CSA UR	1
SHARP/Socle Technology PC3SD21YXPDF	100 mA	6-SMD	3 mA	Triac	1 kV/µs	100 °C	-30 ░C	50 µs	Surface Mount	3.5 mA	600 V	6-SMD			50 mA	CSA UR VDE	1
SHARP/Socle Technology PC3SD21YTZBF	100 mA	6-DIP	7 mA	Triac	1 kV/µs	100 °C	-30 ░C	50 µs	Through Hole	3.5 mA	600 V	6-DIP	0.3 in	7.62 mm	50 mA	CSA UR VDE	1
SHARP/Socle Technology PC3SD21YXPDH	100 mA	6-SMD	3 mA	Triac	1 kV/µs	100 °C	-30 ░C	50 µs	Surface Mount	3.5 mA	600 V	6-SMD (5 Leads) Gull Wing			50 mA	CSA UR VDE	1
SHARP/Socle Technology PC3SD21NTZDF	100 mA	6-DIP	3 mA	Triac	1 kV/µs	100 °C	-30 ░C	50 µs	Through Hole	3.5 mA	600 V	6-DIP	0.3 in 5 Leads	7.62 mm	50 mA	CSA UR	1
SHARP/Socle Technology PC3SD21NTZDH	100 mA	6-DIP	3 mA	Triac	1 kV/µs	100 °C	-30 ░C	50 µs	Through Hole	3.5 mA	600 V	6-DIP	0.3 in 5 Leads	7.62 mm	50 mA	CSA UR	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD
