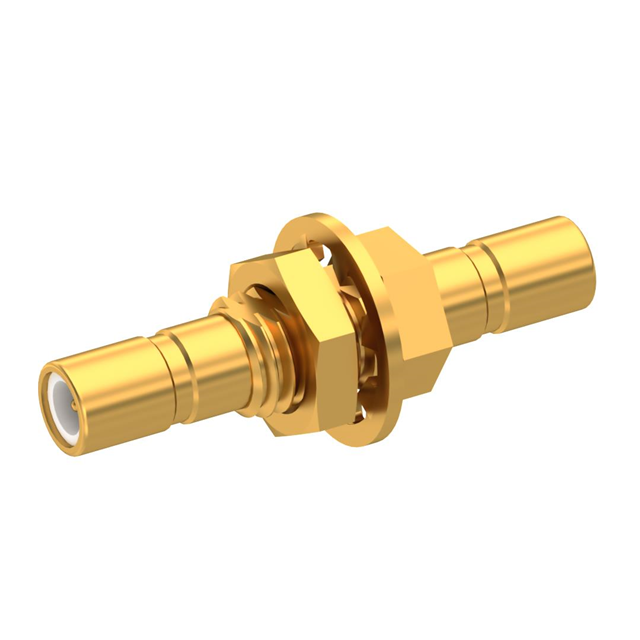

7222-1501-000

Active

Radiall USA, Inc.

SSMB MM STR BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB MM STR BHD

Technical Specifications

Parameters and characteristics for this part

Specification	7222-1501-000

Adapter Series	SSMB to SSMB
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SSMB Jack, Male Pin
Convert To (Adapter End)	SSMB Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Mounting Feature	Conversion Type	Mating Cycles	Dielectric Material	Center Contact Plating	Convert To (Adapter End)	Adapter Series	Body Finish	Body Material	Center Gender	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Center Contact Material	Fastening Type	Style	Frequency - Max [Max]	Adapter Type
Radiall USA, Inc. 7222-1501-600	Bulkhead	Same Series	500	Polytetrafluoroethylene (PTFE)	Gold	Male Pin SSMB Jack	SSMB to SSMB	Gold	Brass	Male to Male	Male Pin SSMB Jack	-65 ░C	165 °C	50 Ohms	Phosphor Bronze	Snap-On	Straight	12.4 GHz	Jack to Jack
Radiall USA, Inc. 7222-1501-000	Bulkhead	Same Series	500	Polytetrafluoroethylene (PTFE)	Gold	Male Pin SSMB Jack	SSMB to SSMB	Gold	Brass	Male to Male	Male Pin SSMB Jack	-65 ░C	165 °C	50 Ohms	Beryllium Copper	Snap-On	Straight	12.4 GHz	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SSMB Jack, Male Pin To SSMB Jack, Male Pin 50 Ohms
