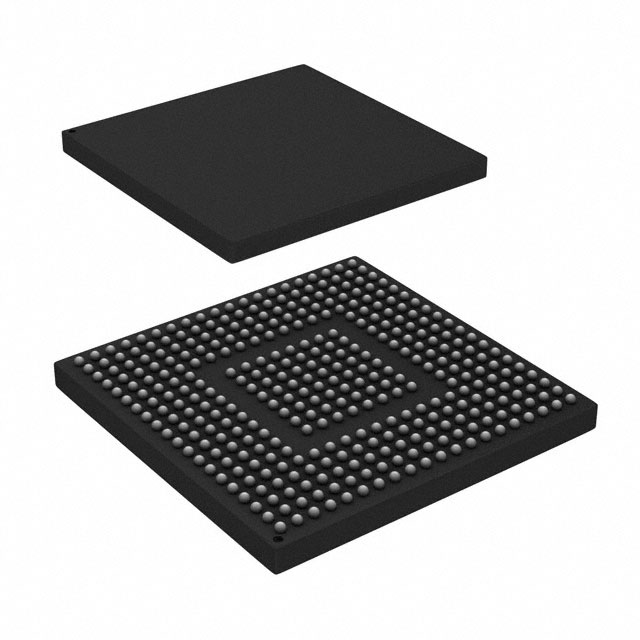

SVF531R3K2CMK4

Active

Freescale Semiconductor - NXP

IC MPU VYBRID 133MHZ 364LFBGA

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC MPU VYBRID 133MHZ 364LFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	SVF531R3K2CMK4

Additional Interfaces	LIN, UART/USART, I2C, IrDA, SDHC, SPI, CAN, MediaLB, SCI
Co-Processors/DSP	Multimedia, NEON™ MPE
Core Processor	ARM® Cortex®-A5, ARM® Cortex®-M4
Display & Interface Controllers	VIU, DCU, GPU, VideoADC, LCD
Ethernet	(2)
Ethernet [Max]	100 Mbps
Ethernet [Min]	10 Mbps
Graphics Acceleration	False
Mounting Type	Surface Mount
Number of Cores/Bus Width [custom]	32 Bit
Number of Cores/Bus Width [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	364-LFBGA
RAM Controllers	DRAM, LPDDR2, DDR3
Security Features	TZ ASC, TZ WDOG, Hashing, Secure JTAG, ARM TZ, RNG, SNVS, RTIC, RTC
Speed	133 MHz
Speed	400 MHz
Supplier Device Package	364-LFBGA
Supplier Device Package [x]	17
Supplier Device Package [y]	17
USB	USB 2.0 OTG + PHY (1)
Voltage - I/O	3.3 V

Part	Security Features	Display & Interface Controllers	Mounting Type	Core Processor	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	RAM Controllers	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Speed	Speed	Co-Processors/DSP	Voltage - I/O	USB	Package / Case	Ethernet [Max]	Ethernet [Min]	Ethernet	Additional Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Graphics Acceleration
Freescale Semiconductor - NXP SVF531R3K1CMK4	ARM TZ Hashing RNG RTC RTIC Secure JTAG SNVS TZ ASC TZ WDOG	DCU GPU LCD VideoADC VIU	Surface Mount	ARM® Cortex®-A5 ARM® Cortex®-M4	17	17	364-LFBGA	DDR3 DRAM LPDDR2	32 Bit	2	133 MHz	400 MHz	Multimedia NEON™ MPE	3.3 V	USB 2.0 OTG + PHY (1)	364-LFBGA	100 Mbps	10 Mbps	(2)	CAN I2C IrDA LIN MediaLB SCI SDHC SPI UART/USART	85 °C	-40 °C
Freescale Semiconductor - NXP SVF531R3K2CMK4	ARM TZ Hashing RNG RTC RTIC Secure JTAG SNVS TZ ASC TZ WDOG	DCU GPU LCD VideoADC VIU	Surface Mount	ARM® Cortex®-A5 ARM® Cortex®-M4	17	17	364-LFBGA	DDR3 DRAM LPDDR2	32 Bit	2	133 MHz	400 MHz	Multimedia NEON™ MPE	3.3 V	USB 2.0 OTG + PHY (1)	364-LFBGA	100 Mbps	10 Mbps	(2)	CAN I2C IrDA LIN MediaLB SCI SDHC SPI UART/USART	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	450	$ 28.35

General part information

ARM® Cortex®-A5 + Cortex®-M4 Microprocessor IC Vybrid, VF5xxR 2 Core, 32-Bit 400MHz, 133MHz 364-LFBGA (17x17)
