0191780012

Obsolete

Molex

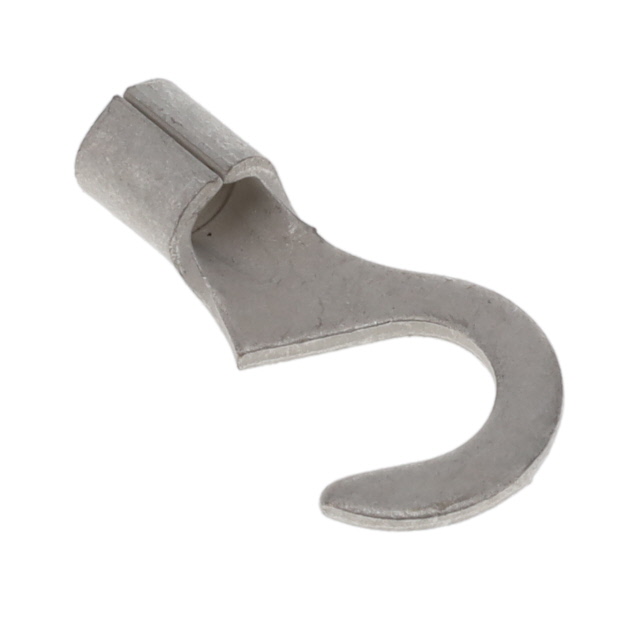

CONN RING HOOK 14-16AWG #10

Search across all available documentation for this part.

Obsolete

Molex

CONN RING HOOK 14-16AWG #10

Technical Specifications

Parameters and characteristics for this part

Part	Terminal Type	Contact Finish	Mounting Type	Stud/Tab Size	Insulation	Contact Material	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Max]	Wire Gauge [Min]
Molex 0191780008	Hook	Electro-Tin	Free Hanging (In-Line)	6 Stud	Non-Insulated	Copper	0.677 in	17.2 mm	8.89 mm	0.35 in	Crimp	0.031 in	0.79 mm
Molex 0191780018	Hook	Electro-Tin	Free Hanging (In-Line)	10 Stud	Non-Insulated	Copper	0.775 in	19.69 mm			Crimp	0.04 in	1.02 mm	9.45 mm	0.372 in	12 AWG	10 AWG
Molex 0191780012	Hook	Electro-Tin	Free Hanging (In-Line)	10 Stud	Non-Insulated	Copper	0.677 in	17.2 mm	8.89 mm	0.35 in	Crimp	0.031 in	0.79 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 10 Stud Hook 14-16 AWG Crimp
