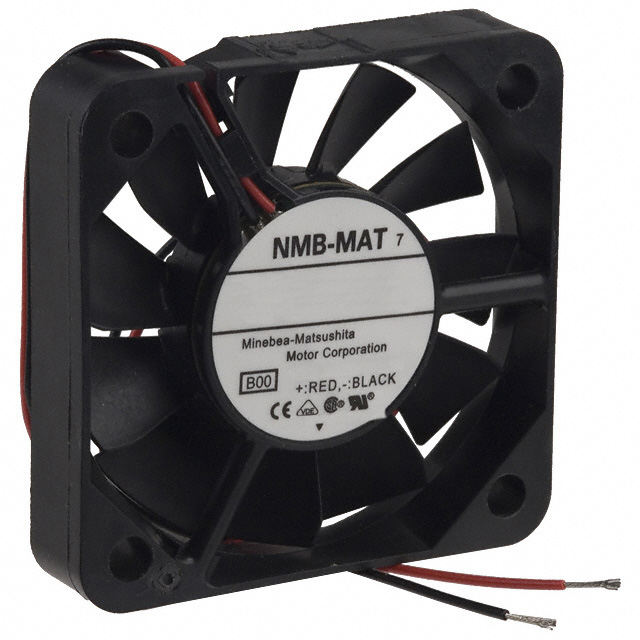

2004KL-01W-B40-B00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 5 V, SQUARE, 50 MM, 10 MM, BALL BEARING, 8.1 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFan Agency Approvals Fans & Blowers Catalog +3

2004KL-01W-B40-B00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 5 V, SQUARE, 50 MM, 10 MM, BALL BEARING, 8.1 CFM

Deep-Dive with AI

DocumentsFan Agency Approvals Fans & Blowers Catalog +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2004KL-01W-B40-B00

Air Flow	8.1 CFM
Air Flow	0.227 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.8 W
RPM	4500 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	26 Pa
Static Pressure	0.104 in H2O
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	6 VDC
Voltage Range [Min]	4.5 V
Weight	0.044 lb
Weight	19.96 g
Width [y]	10 mm

2004KL Series

Part	Power (Watts)	Termination	Features	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Noise	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Width [y]	RPM	Approval Agency	Static Pressure	Static Pressure	Material - Blade	Air Flow	Air Flow	Weight	Weight	Voltage - Rated	Fan Type	Material - Frame
NMB TECHNOLOGIES 2004KL-01W-B39-B50	0.5 W	3 Wire Leads	Speed Sensor (Tach)	60000 Hrs	50 mm	50 mm	70 °C	70 °C	-10 °C	-10 °C	Ball	23 dB(A)	4.5 V	6 VDC	100 mA	10 mm	3500 RPM	CE CSA UL VDE	0.064 in H2O	16 Pa	Plastic	6.4 CFM	0.179 mł/min	0.044 lb	19.96 g	5 V	Tubeaxial	Plastic
NMB TECHNOLOGIES 2004KL-01W-B49-B50	0.8 W	3 Wire Leads	Speed Sensor (Tach)	60000 Hrs	50 mm	50 mm	70 °C	70 °C	-10 °C	-10 °C	Ball		4.5 V	6 VDC		10 mm	4500 RPM	CE CSA UL VDE	0.104 in H2O	26 Pa	Plastic	8.1 CFM	0.227 m³/min	0.044 lb	19.96 g	5 V	Tubeaxial	Plastic
NMB TECHNOLOGIES 2004KL-01W-B39-B00	0.5 W	3 Wire Leads	Locked Rotor Sensor	60000 Hrs	50 mm	50 mm	70 °C	70 °C	-10 °C	-10 °C	Ball	23 dB(A)	4.5 V	6 VDC	100 mA	10 mm	3500 RPM	CE CSA UL VDE	0.064 in H2O	16 Pa	Plastic	6.4 CFM	0.179 mł/min	0.044 lb	19.96 g	5 V	Tubeaxial	Plastic
NMB TECHNOLOGIES 2004KL-01W-B50-B00	1.5 W	2 Wire Leads		60000 Hrs	50 mm	50 mm	70 °C	70 °C	-10 °C	-10 °C	Ball	34 dB(A)	4.5 V	6 VDC		10 mm	5500 RPM	CE CSA UL VDE	0.14 in H2O	34.9 Pa	Plastic	10.2 CFM	0.286 mł/min	0.044 lb	19.96 g	5 V	Tubeaxial	Plastic
NMB TECHNOLOGIES 2004KL-04W-B59-B50	1.2 W	3 Wire Leads	Speed Sensor (Tach)	60000 Hrs	50 mm	50 mm	70 °C	70 °C	-10 °C	-10 °C	Ball	34 dB(A)	10.2 VDC	13.8 VDC	100 mA	10 mm	5500 RPM	CE CSA UL VDE	0.14 in H2O	34.9 Pa	Plastic	10.2 CFM	0.286 mł/min	0.044 lb	19.96 g	12 VDC	Tubeaxial	Plastic
NMB TECHNOLOGIES 2004KL-04W-B40-B00	840 mW	2 Wire Leads		60000 Hrs	50 mm	50 mm	70 °C	70 °C	-10 °C	-10 °C	Ball		10.2 VDC	13.8 VDC	70 mA	10 mm	4500 RPM	CE CSA UL VDE	0.104 in H2O	26 Pa	Plastic	8.1 CFM	0.227 m³/min	0.044 lb	19.96 g	12 VDC	Tubeaxial	Plastic
NMB TECHNOLOGIES 2004KL-01W-B40-B00	0.8 W	2 Wire Leads		60000 Hrs	50 mm	50 mm	70 °C	70 °C	-10 °C	-10 °C	Ball		4.5 V	6 VDC		10 mm	4500 RPM	CE CSA UL VDE	0.104 in H2O	26 Pa	Plastic	8.1 CFM	0.227 m³/min	0.044 lb	19.96 g	5 V	Tubeaxial	Plastic
NMB TECHNOLOGIES 2004KL-01W-B49-B00	0.8 W	3 Wire Leads	Locked Rotor Sensor	60000 Hrs	50 mm	50 mm	70 °C	70 °C	-10 °C	-10 °C	Ball		4.5 V	6 VDC		10 mm	4500 RPM	CE CSA UL VDE	0.104 in H2O	26 Pa	Plastic	8.1 CFM	0.227 m³/min	0.044 lb	19.96 g	5 V	Tubeaxial	Plastic
NMB TECHNOLOGIES 2004KL-01W-B30-B00	0.5 W	2 Wire Leads		60000 Hrs	50 mm	50 mm	70 °C	70 °C	-10 °C	-10 °C	Ball	23 dB(A)	4.5 V	6 VDC	100 mA	10 mm	3500 RPM	CE CSA UL VDE	0.064 in H2O	16 Pa	Plastic	6.4 CFM	0.179 mł/min	0.044 lb	19.96 g	5 V	Tubeaxial	Plastic
NMB TECHNOLOGIES 2004KL-04W-B49-B00	840 mW	3 Wire Leads	Locked Rotor Sensor	60000 Hrs	50 mm	50 mm	70 °C	70 °C	-10 °C	-10 °C	Ball		10.2 VDC	13.8 VDC	70 mA	10 mm	4500 RPM	CE CSA UL VDE	0.104 in H2O	26 Pa	Plastic	8.1 CFM	0.227 m³/min	0.044 lb	19.96 g	12 VDC	Tubeaxial	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.21
		10	$ 11.66
		25	$ 10.96
		50	$ 10.55
		100	$ 9.71
		280	$ 9.09
		560	$ 8.95
Newark	Each	100	$ 12.70

Description

General part information

2004KL Series

The 2004KL series standard DC Axial Fan commonly used in PC/PSU and fan tray applications. In addition, this series offers a range of high performance fans with enhanced reliability and brushless. Environmental protection and control features for high end applications, typical of server and telecommunication equipment applications.
