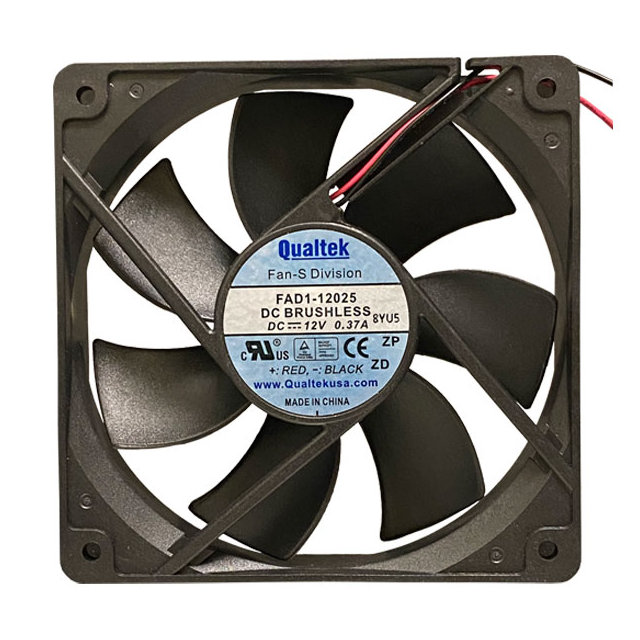

FAD1-12025CBMW12

Active

Qualtek

FAN AXIAL 120X25.5MM 12VDC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 120X25.5MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Termination	Fan Type	Voltage - Rated	Material - Blade	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Noise	Material - Frame	Static Pressure	Static Pressure	Width [x]	RPM	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Bearing Type	Current Rating (Amps)
Qualtek FAD1-12025CBMW12	120 mm	120 mm	2 Wire Leads	Tubeaxial	12 VDC	Plastic	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	156.04 g	0.344 lb	38 dB(A)	Plastic	0.113 in H2O	28.1 Pa	25.5 mm	2050 RPM	2.27 m³/min	81 CFM	13.2 VDC	10.8 VDC	1.92 W	Ball
Qualtek FAD1-12025DBMW12	120 mm	120 mm	2 Wire Leads	Tubeaxial	24 VDC	Plastic	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	156.04 g	0.344 lb	38 dB(A)	Plastic	0.113 in H2O	28.1 Pa	25.5 mm	2050 RPM	2.27 m³/min	81 CFM	26.4 VDC	21.6 VDC	3.12 W	Ball
Qualtek FAD1-12025DSJW12	120 mm	120 mm	2 Wire Leads	Tubeaxial	24 VDC	Plastic	CE cURus TUV	60 °C	60 °C	-10 °C	-10 °C	156.04 g	0.344 lb	43.3 dB(A)	Plastic	0.174 in H2O	43.3 Pa	25.5 mm	2500 RPM			26.4 VDC	21.6 VDC	4.56 W	Sleeve	0.19 A
Qualtek FAD1-12025DBHW12	120 mm	120 mm	2 Wire Leads	Tubeaxial	24 VDC	Plastic	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	156.04 g	0.344 lb	39.1 dB(A)	Plastic	0.134 in H2O	33.5 Pa	25.5 mm	2200 RPM	2.46 m³/min	87.9 CFM	26.4 VDC	21.6 VDC	3.12 W	Ball
Qualtek FAD1-12025CSHW12	120 mm	120 mm	2 Wire Leads	Tubeaxial	12 VDC	Plastic	CE cURus TUV	60 °C	60 °C	-10 °C	-10 °C	156.04 g	0.344 lb	39.1 dB(A)	Plastic	0.134 in H2O	33.5 Pa	25.5 mm	2200 RPM	2.46 m³/min	87.9 CFM	13.2 VDC	10.8 VDC	3.48 W	Sleeve	0.29 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.90

General part information

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 81.0 CFM (2.27mł/min) 2 Wire Leads
