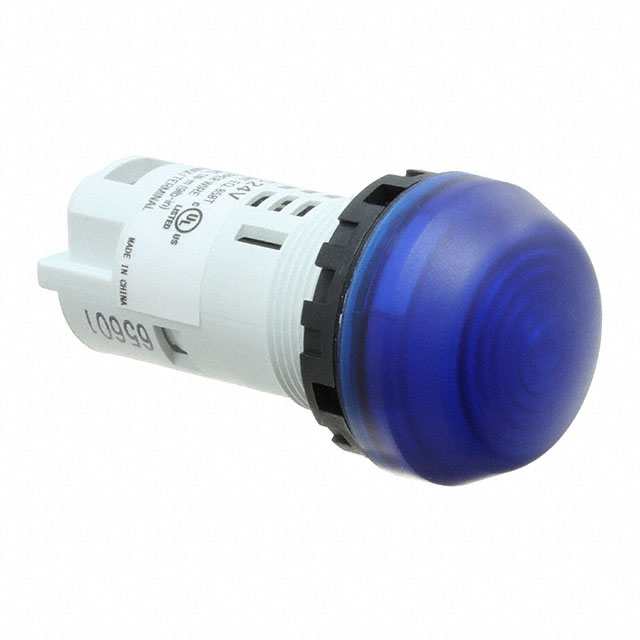

AP22M-2Q4S

Active

IDEC

LED PANEL MOUNT INDICATOR, PILOT LIGHT, BLUE, 24 VDC, 22 MM, 24 MA, IP66

Search across all available documentation for this part.

Active

IDEC

LED PANEL MOUNT INDICATOR, PILOT LIGHT, BLUE, 24 VDC, 22 MM, 24 MA, IP66

Technical Specifications

Parameters and characteristics for this part

Part	Voltage	Current	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Lens Size [diameter]	Lamp Color	Termination Style	Lens Transparency	Lens Style	Panel Cutout Shape	Type
IDEC AP22M-2Q4S	24 V	24 mA	0.88 in	22.3 mm	AC/DC	29.8 mm	Blue	Screw Terminal	Clear	Round with Domed Top	Round	LED
IDEC AP22M-2QHR	120 V	24 mA	0.88 in	22.3 mm	AC	29.8 mm	Red	Screw Terminal	Clear	Round with Domed Top	Round	LED
IDEC AP22M-2Q4G	24 V	24 mA	0.88 in	22.3 mm	AC/DC	29.8 mm	Green	Screw Terminal	Clear	Round with Domed Top	Round	LED
IDEC AP22M-2Q4R	24 V	24 mA	0.88 in	22.3 mm	AC/DC	29.8 mm	Red	Screw Terminal	Clear	Round with Domed Top	Round	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Blue Clear 24V 24mA Screw Terminal
