M4698 SL005

Active

ALPHA WIRE

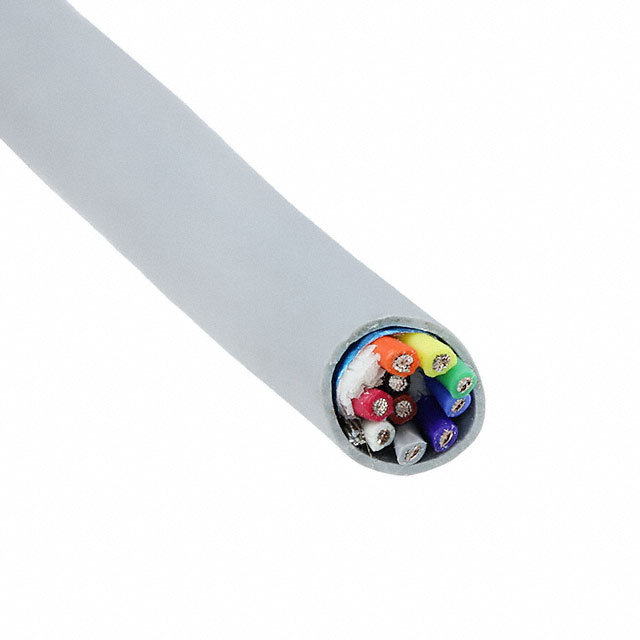

CABLE 10COND 18AWG SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 18AWG SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M4698 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	9.83 mm
Jacket (Insulation) Diameter [diameter]	0.387 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Material	Wire Gauge	Length [x]	Length [x]	Conductor Material	Voltage	Features	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Shield Coverage	Number of Conductors	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color
ALPHA WIRE M4698 SL005	Aluminum	18 AWG	30.5 m	100 ft	Copper Tinned	300 V	Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	9.83 mm	0.387 "	Multi-Conductor	Foil	-20 C	80 C	UL Style 2464	100 %	10	Poly-Vinyl Chloride (PVC)	16	30 AWG	Slate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Conductor Multi-Conductor Cable Slate 18 AWG Foil 100.0' (30.5m)
