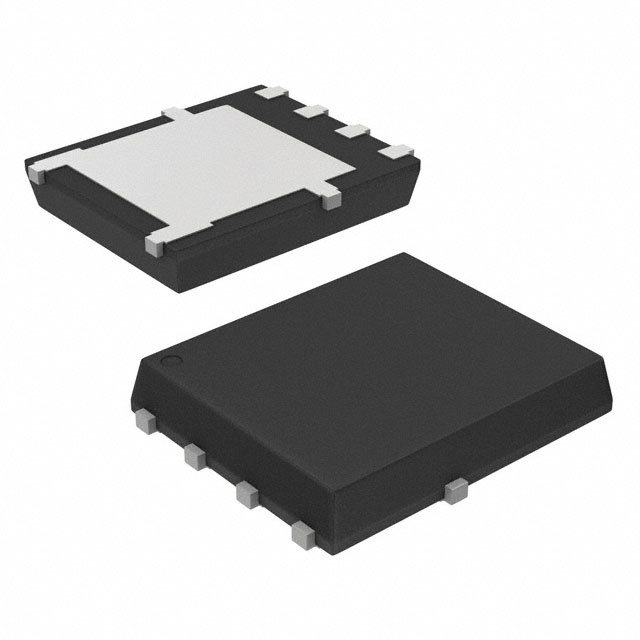

NTS12120EMFST3G

Obsolete

ON Semiconductor

TRENCH SCHOTTKY RECTIFIER WITH VERY LOW LEAKAGE, 12 A, 120 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-488AA-DFN5 5X6, 1.27P (SO 8FL)+1

NTS12120EMFST3G

Obsolete

ON Semiconductor

TRENCH SCHOTTKY RECTIFIER WITH VERY LOW LEAKAGE, 12 A, 120 V

Deep-Dive with AI

DocumentsDatasheet Package Drawing-488AA-DFN5 5X6, 1.27P (SO 8FL)+1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NTS12120EMFST3G

Current - Average Rectified (Io)	12 A
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	8-PowerTDFN, 5 Leads
Speed	200 mA, 500 ns
Supplier Device Package	5-DFN (5x6)
Supplier Device Package	8-SOFL
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	120 V
Voltage - Forward (Vf) (Max) @ If	830 mV

TS12120EMFS Series

Trench Schottky Rectifier with Very Low Leakage, 12 A, 120 V

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Current - Average Rectified (Io)	Technology	Speed	Supplier Device Package	Supplier Device Package	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]
ON Semiconductor NTS12120MFST1G	830 mV	150 °C	-55 °C	8-PowerTDFN 5 Leads	12 A	Schottky	200 mA 500 ns	5-DFN (5x6)	8-SOFL	Surface Mount	120 V
ON Semiconductor NTS12120EMFST3G	830 mV	150 °C	-55 °C	8-PowerTDFN 5 Leads	12 A	Schottky	200 mA 500 ns	5-DFN (5x6)	8-SOFL	Surface Mount	120 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.25
		10000	$ 0.23
		25000	$ 0.23

Description

General part information

TS12120EMFS Series

The NTS12120MFS and NTS12120EMFS devices are our new Low Forward Voltage and Low Leakage Trench-based Schottky Rectifiers. This new technology allows lower forward voltage drop without the high reverse leakage tradeoff experienced with planar schottky rectifiers. This platform also provides very stable switching characteristics over a wide temperature range and is an ideal output rectifer for switching power supplies.
