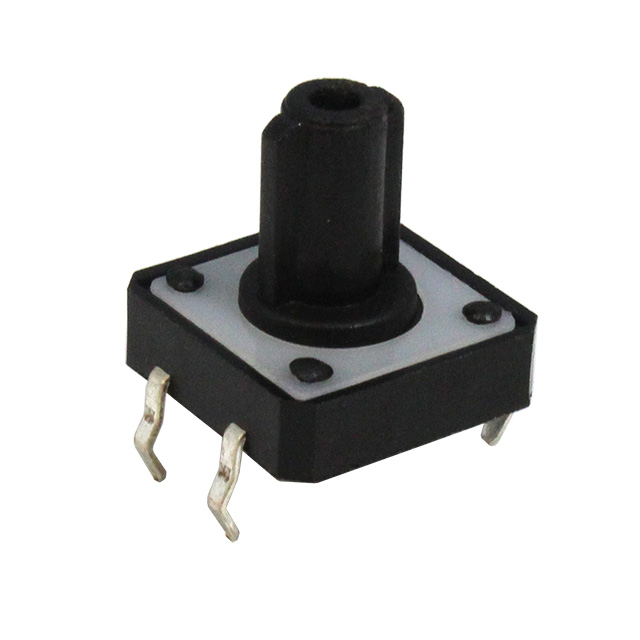

CT1103CF180

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CT1103CF180

Actuator Height off PCB, Vertical [z]	12 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	180 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	12 mm
Outline [y]	12 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Circuit	Illumination	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Actuator Type	Switch Travel [custom]	Operating Force	Switch Function	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Contact Rating @ Voltage	Mounting Type	Actuator Orientation
CIT Relay and Switch CT1103CF180	SPST-NO	Non-Illuminated	12 mm	12 mm	12 mm	Standard	0.3 mm	180 gf	Off-Mom	PC Pin	85 °C	-40 °C	Nylon 6/6 Polyamide (PA66)	0.05 A 50 VDC	Through Hole	Top Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
