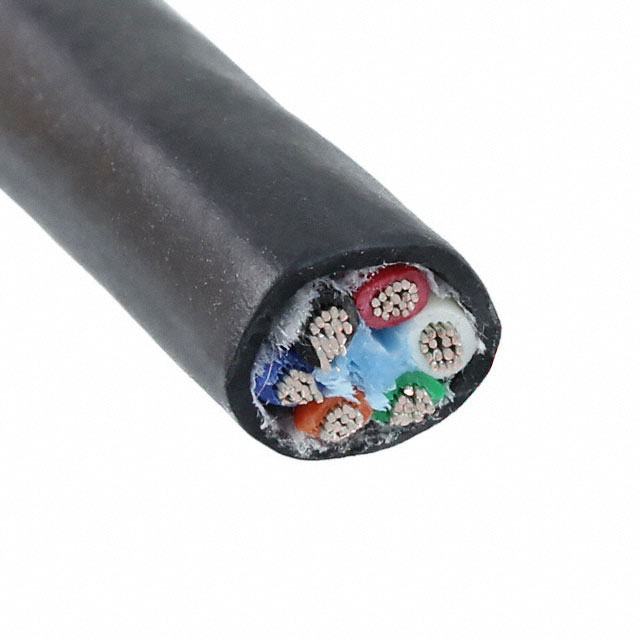

25076 BK199

Active

ALPHA WIRE

CABLE 6COND 16AWG BLACK 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 16AWG BLACK 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	25076 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter	0.343 in
Jacket (Insulation) Diameter	8.71 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Jacket (Insulation) Material	Ratings	Length	Length	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Conductors	Jacket Color	Conductor Insulation	Voltage	Wire Gauge
ALPHA WIRE 25076 YL199	19	0.0117 in	Multi-Conductor	0.343 in	8.71 mm	Polyurethane (PU)	ISO 10993 UL Style 20668	1000 ft	304.8 m	Copper Tinned	-30 ░C	90 °C	Biological Compatibility Rip Cord	6	Yellow	Poly-Vinyl Chloride (PVC)	300 V	16 AWG
ALPHA WIRE 25076 BK199	19	0.0117 in	Multi-Conductor	0.343 in	8.71 mm	Polyurethane (PU)	ISO 10993 UL Style 20668	1000 ft	304.8 m	Copper Tinned	-30 ░C	90 °C	Biological Compatibility Rip Cord	6	Black	Poly-Vinyl Chloride (PVC)	300 V	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 9.60

General part information

6 Conductor Multi-Conductor Cable Black 16 AWG 1000.0' (304.8m)
