6STD09AAA99B90X

Active

Amphenol CONEC

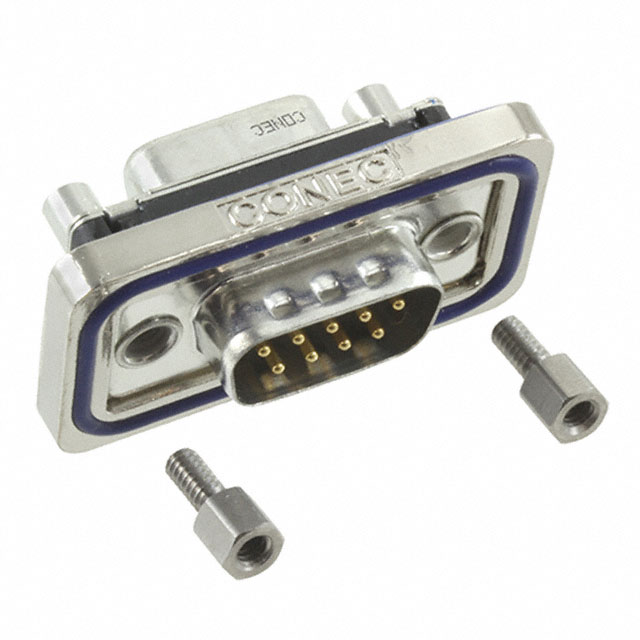

CONN DSUB ADAPTER DB9F DB9M

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN DSUB ADAPTER DB9F DB9M

Technical Specifications

Parameters and characteristics for this part

Specification	6STD09AAA99B90X

Connector Style	Connector Saver
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Convert From (Adapter End)	D-Sub, 9 Pin Male
Current Rating (Amps)	7.5 A
Housing Color	Silver
Includes	1 Connector, 2 Jack Screws
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Tin Plated, Copper Alloy
Voltage Rating	125 VDC

Part	Shell Material, Finish	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Convert From (Adapter End)	Number of Rows	Ingress Protection	Current Rating (Amps)	Contact Finish	Includes	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Housing Color
Amphenol CONEC 6STD09AAA99B90X	Copper Alloy Tin Plated	UL94 V-0	8 çin	0.203 çm	D-Sub 9 Pin Male	2	IP67 - Dust Tight Waterproof	7.5 A	Gold	1 Connector 2 Jack Screws	125 VDC	-25 °C	105 ░C	Connector Saver	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Connector D-Sub, 9 Pin Female To D-Sub, 9 Pin Male Panel Mount
