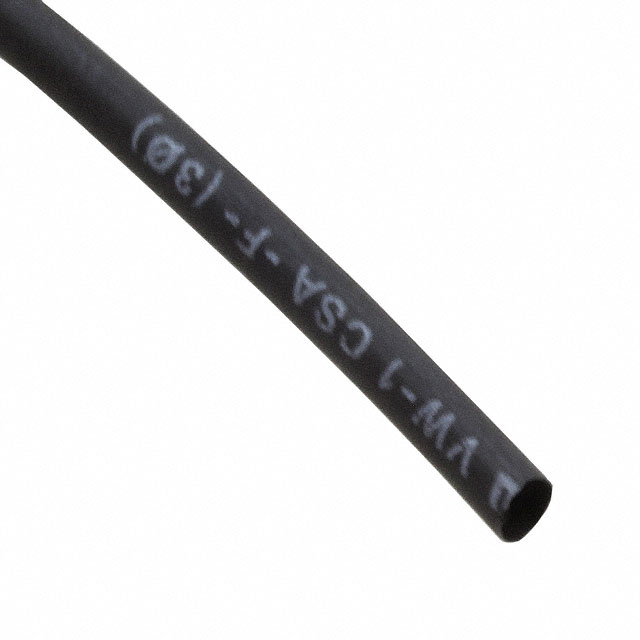

ZH4-3.0-0-SP-SM

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZH4-3.0-0-SP-SM

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZH4-3.0-0-SP-SM

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	1.52 mm
Inner Diameter - Recovered [diameter]	0.06 in
Inner Diameter - Supplied [diameter]	0.13 in
Inner Diameter - Supplied [diameter]	3.3 mm
Length	4593.4 ft
Length	1400 m
Length [x]	1 m
Length [x]	3.28 ft
Material	Halogen Free, Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 ░C
Recovered Wall Thickness	0.01 in
Recovered Wall Thickness	0.25 mm
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

ZH4 Series

Part	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Length [x]	Length [x]	Type	Material	Features	Inner Diameter - Supplied	Length	Length
TE Connectivity Raychem Cable Protection ZH4-2.0-0-SP-SM	Black	0.092 in	2.34 mm	2 to 1	125 °C	-30 ░C	0.039 in	0.99 mm	0.01 in	0.25 mm	70 °C	1 m	3.28 ft	Tubing Flexible	Halogen Free Polyolefin (PO)	Flame Retardant
TE Connectivity Raychem Cable Protection ZH4-10.0-0-FSP-SM	Black	0.413 in	10.49 mm	2 to 1	125 °C	-30 ░C	0.197 "	5 mm	0.011 "	0.28 mm	70 °C	1 m 500 m	3.28 ft 1640.4 ft	Tubing Flexible	Halogen Free Polyolefin (PO)	Flame Retardant
TE Connectivity Raychem Cable Protection ZH4-5.0-0-SP-SM	Black	0.217 in		2 to 1	125 °C	-30 ░C			0.01 in	0.25 mm	70 °C			Tubing Flexible	Halogen Free Polyolefin (PO)	Flame Retardant	5.5 mm
TE Connectivity Raychem Cable Protection ZH4-7.0-0-SP-SM	Black	0.295 in	7.49 mm	2 to 1	125 °C	-30 ░C	0.138 in	3.51 mm	0.011 "	0.28 mm	70 °C	1 m 350 m	3.28 ft 1148.3 '	Tubing Flexible	Halogen Free Polyolefin (PO)	Flame Retardant
TE Connectivity Raychem Cable Protection ZH4-9.0-0-FSP-SM	Black	0.375 in	9.53 mm	2 to 1	125 °C	-30 ░C	0.178 in	4.52 mm	0.011 "	0.28 mm	70 °C	1 m	3.28 ft	Tubing Flexible	Halogen Free Polyolefin (PO)	Flame Retardant		164 ft	50 m
TE Connectivity Raychem Cable Protection ZH4-8.0-0-FSP-SM	Black	0.335 in	8.51 mm	2 to 1	125 °C	-30 ░C	0.157 in	3.99 mm	0.011 "	0.28 mm	70 °C	1 m 500 m	3.28 ft 1640.4 ft	Tubing Flexible	Halogen Free Polyolefin (PO)	Flame Retardant
TE Connectivity Raychem Cable Protection ZH4-3.0-0-SP-SM	Black	0.13 in	3.3 mm	2 to 1	125 °C	-30 ░C	0.06 in	1.52 mm	0.01 in	0.25 mm	70 °C	1 m	3.28 ft	Tubing Flexible	Halogen Free Polyolefin (PO)	Flame Retardant		4593.4 ft	1400 m
TE Connectivity Raychem Cable Protection ZH4-1.5-0-SP-SM	Black	0.076 in	1.93 mm	2 to 1	125 °C	-30 ░C	0.03 in	0.76 mm	0.01 in	0.25 mm	70 °C	1 m	3.28 ft	Tubing Flexible	Halogen Free Polyolefin (PO)	Flame Retardant		6562 ft	2000 m
TE Connectivity Raychem Cable Protection ZH4-2.5-0-SP-SM	Black	0.11 in	2.79 mm	2 to 1	125 °C	-30 ░C	0.049 in	1.24 mm	0.01 in	0.25 mm	70 °C	1 m	3.28 ft	Tubing Flexible	Halogen Free Polyolefin (PO)	Flame Retardant		5249.3 ft	1600 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZH4 Series

Heat Shrink Tubing, Flexible 0.130" (3.30mm) 2 to 1 Black 3.28' (1.00m)
