GTC06F16-12S(RDS)(025)
UnknownAmphenol Industrial Operations
CONN PLUG FMALE 1P SILVER CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
GTC06F16-12S(RDS)(025)
UnknownAmphenol Industrial Operations
CONN PLUG FMALE 1P SILVER CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GTC06F16-12S(RDS)(025) |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 120 A |
| Fastening Type | Reverse Bayonet Lock |
| Features | Cable Clamp |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Black Zinc Cobalt |
| Shell Material | Aluminum |
| Shell Size - Insert | 16-12 |
| Shielding | Unshielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 77.63 | |
Description
General part information
GTC06F16 Series

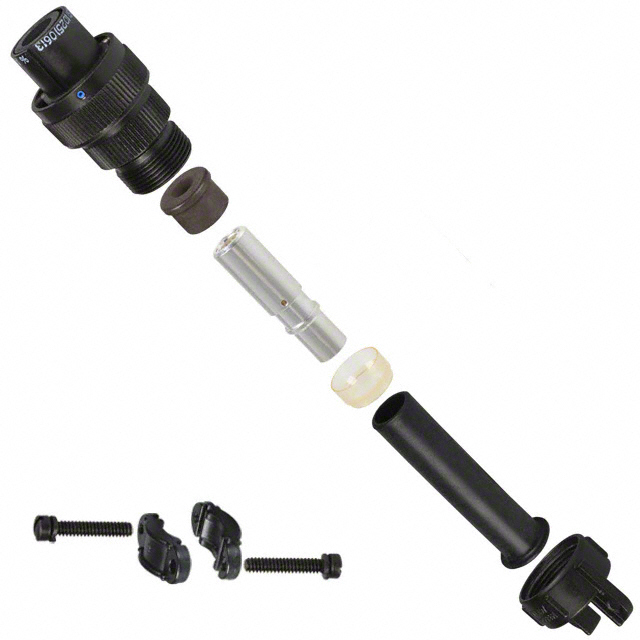

1 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
No documents available
