28K607-272L5

Active

Rosenberger

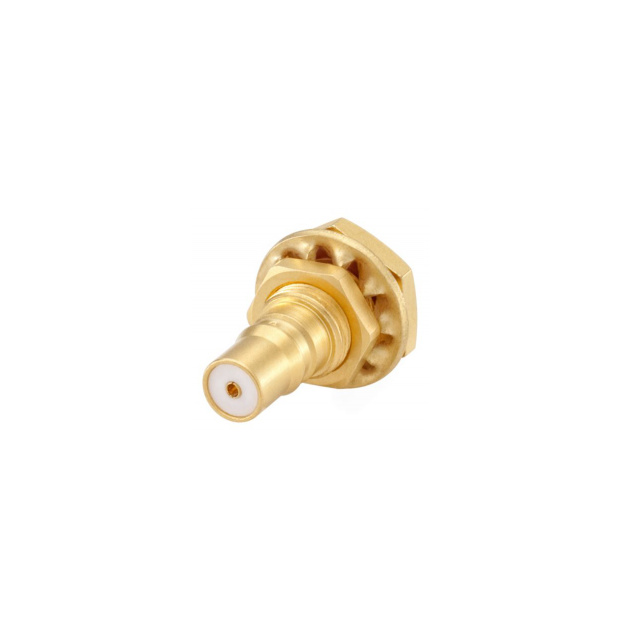

QMA BULKHEAD JACK

Search across all available documentation for this part.

Active

Rosenberger

QMA BULKHEAD JACK

Technical Specifications

Parameters and characteristics for this part

Specification	28K607-272L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Feature	Bulkhead
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Housing Color	Body Material	Frequency - Max [Max]	Center Contact Material	Shield Termination	Connector Type	Number of Ports	Voltage Rating	Impedance	Contact Termination	Fastening Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Center Contact Plating	Body Finish	Cable Group
Rosenberger 28K607-272L5	Gold	Brass	18 GHz	Beryllium Copper	Solder	Female Socket Jack	1	335 V	50 Ohms	Solder	Snap-On	Bulkhead	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Gold	Gold
Rosenberger 28K607-303N5	Silver	Brass	18 GHz	Beryllium Copper	Crimp	Female Socket Jack	1	350 V	50 Ohms	Solder	Snap-On	Bulkhead	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Gold	White Bronze	RG-316
Rosenberger 28K607-271L5	Gold	Brass	18 GHz	Beryllium Copper	Solder	Female Socket Jack	1	250 VDC	50 Ohms	Solder	Snap-On	Bulkhead	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Gold	Gold	RG-405 (.085" Semi Rigid)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 20.81

General part information

QMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
