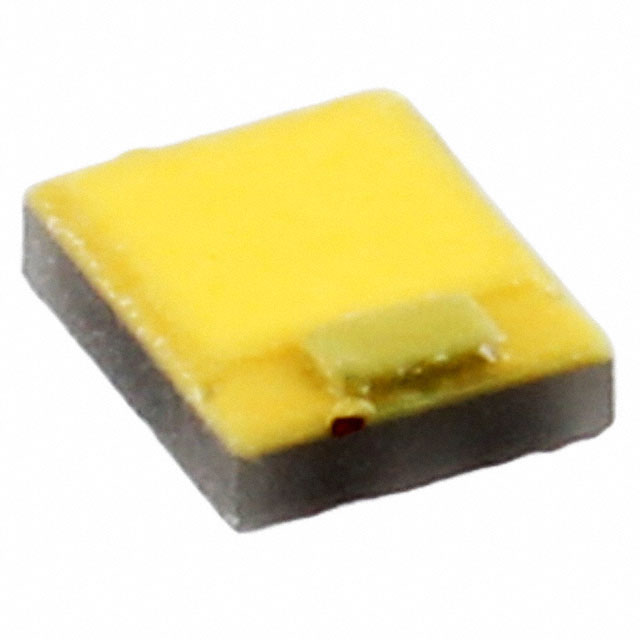

LXZ2-2790-5

Active

Lumileds

SINGLE COLOR LED, WARM WHITE, ROHS COMPLIANT PACKAGE-3

Search across all available documentation for this part.

Active

Lumileds

SINGLE COLOR LED, WARM WHITE, ROHS COMPLIANT PACKAGE-3

Technical Specifications

Parameters and characteristics for this part

Specification	LXZ2-2790-5

CCT (K)	2700 K
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max [Max]	1.2 A
Height - Seated (Max) [Max] [z]	0.031 "
Height - Seated (Max) [Max] [z]	0.78 mm
Lumens/Watt @ Current - Test	82 lm/W
Mounting Type	Surface Mount
Package / Case	0806 (2016 Metric)
Size / Dimension [x]	0.08 "
Size / Dimension [x]	2.04 mm
Size / Dimension [y]	1.64 mm
Size / Dimension [y]	0.065 in
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	3 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.8 V

Part	Flux @ 85°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [diameter]	Viewing Angle	Lumens/Watt @ Current - Test	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	CCT (K)	Mounting Type	Package / Case	CRI (Color Rendering Index)
Lumileds LXZ2-2780-3	185 lm	0.031 "	0.78 mm	3 °C/W	120 °	94 lm/W	Warm White	0.08 "	2.04 mm	1.64 mm	0.065 in	1.2 A	2.8 V	SMD	2700 K	Surface Mount	0806 (2016 Metric)	80
Lumileds LXZ2-3590-5	171 lm	0.031 "	0.78 mm	3 °C/W	116 °	87 lm/W	Warm White	0.08 "	2.04 mm	1.64 mm	0.065 in	1.2 A	2.8 V	SMD		Surface Mount	0806 (2016 Metric)	90
Lumileds LXZ2-3580-5	205 lm	0.031 "	0.78 mm	3 °C/W	120 °	105 lm/W	Warm White	0.08 "	2.04 mm	1.64 mm	0.065 in	1.2 A	2.8 V	SMD		Surface Mount	0806 (2016 Metric)	80
Lumileds LXZ2-2780-5	185 lm	0.031 "	0.78 mm	3 °C/W	120 °	94 lm/W	Warm White	0.08 "	2.04 mm	1.64 mm	0.065 in	1.2 A	2.8 V	SMD	2700 K	Surface Mount	0806 (2016 Metric)	80
Lumileds LXZ2-2790-5		0.031 "	0.78 mm	3 °C/W	120 °	82 lm/W	Warm White	0.08 "	2.04 mm	1.64 mm	0.065 in	1.2 A	2.8 V	SMD	2700 K	Surface Mount	0806 (2016 Metric)	90

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Micro footprint enables close packaging

Undomed design allows precise optical control

1-, 3- and 5-step MacAdam ellipse: Freedom from Binning enabling color consistency
