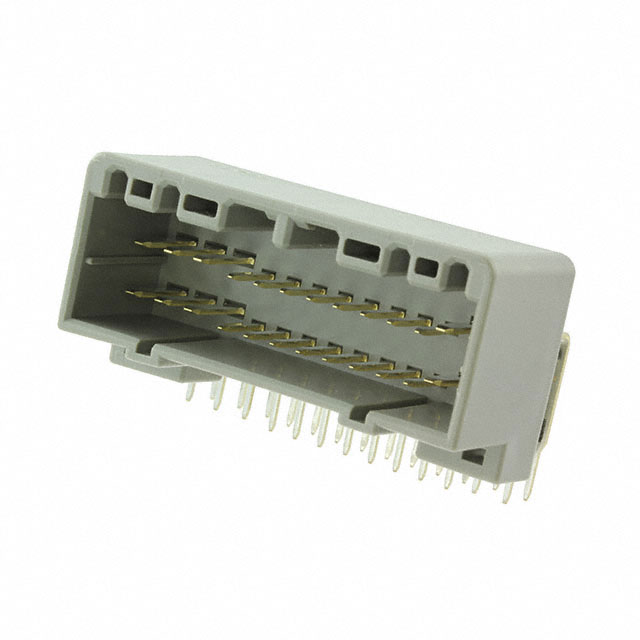

GT7-26DP-DS(70)

Obsolete

Hirose Electric USA, Inc.

CONNECTOR, PCB CONNECTOR

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONNECTOR, PCB CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	GT7-26DP-DS(70)

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Color	Gray
Insulation Height	21.89 mm
Insulation Height	0.862 in
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Accessory Type	Number of Positions	For Use With/Related Products	Contact Shape	Shrouding	Features	Insulation Color	Style	Insulation Height	Insulation Height	Termination	Number of Positions Loaded	Fastening Type	Contact Material	Mounting Type	Connector Type	Insulation Material	Contact Type	Number of Rows	Contact Finish - Post
Hirose Electric USA, Inc. GT7-26R	Retainer	26	GT7 Series Housing
Hirose Electric USA, Inc. GT7-26DP-DS(70)		26		Square	Shrouded - 4 Wall	Mounting Flange	Gray	Board to Cable/Wire	21.89 mm	0.862 in	Solder	All	Latch Holder	Brass	Through Hole Right Angle	Header	Polybutylene Terephthalate (PBT)	Male Pin	2	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 26 position
