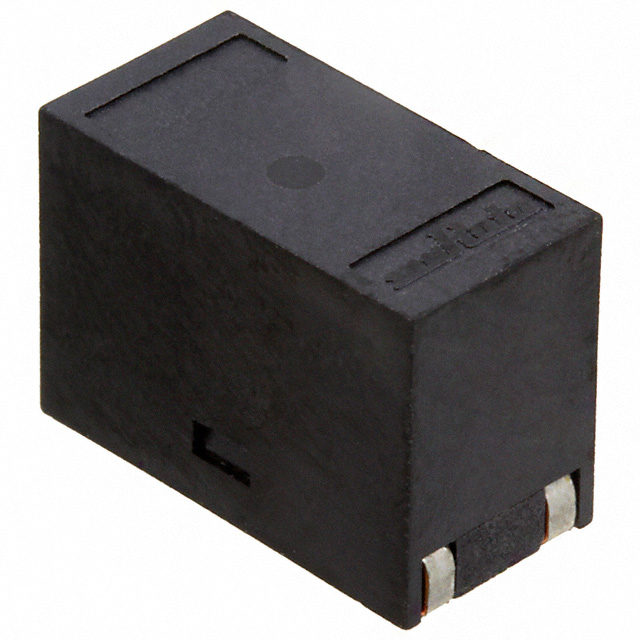

PLT10HH501100PNL

Active

Murata Power Solutions Inc.

DATA LINE FILTER, 2 FUNCTION(S), 100V, 10A

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DATA LINE FILTER, 2 FUNCTION(S), 100V, 10A

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Filter Type	DC Resistance (DCR) (Max)	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Max) [Max]	Ratings	Number of Lines	Voltage Rating - DC	Height (Max)	Height (Max) [Max]	Impedance @ Frequency	DC Resistance (DCR) (Max) [Max]
Murata Power Solutions Inc. PLT10HH450180PNL	Surface Mount	12.9 mm	0.508 in	0.358 in	9.1 mm	Power Line	1.8 mOhm	Vertical	4 Lead	-55 °C	125 °C	18 A	AEC-Q200	2	300 V	9.4 mm	0.37 in	45 Ohms
Murata Power Solutions Inc. PLT10HH1026R0PNL	Surface Mount	12.9 mm	0.508 in	0.358 in	9.1 mm	Power Line		Vertical	4 Lead	-55 °C	105 ░C	6 A	AEC-Q200	2	100 V	9.4 mm	0.37 in	1 kOhms
Murata Power Solutions Inc. PLT10HH501100PNL	Surface Mount	12.9 mm	0.508 in	0.358 in	9.1 mm	Power Line		Vertical	4 Lead	-55 °C	105 ░C	10 A	AEC-Q200	2	100 V	9.4 mm	0.37 in	500 Ohms	4.1 mOhm
Murata Power Solutions Inc. PLT10HH401100PNL	Surface Mount	12.9 mm	0.508 in	0.358 in	9.1 mm	Power Line		Vertical	4 Lead	-55 °C	125 °C	10 A	AEC-Q200	2	100 V	9.4 mm	0.37 in	400 Ohms	4.1 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Line Common Mode Choke Surface Mount 500 Ohms @ 10 MHz 10A DCR 4.1mOhm
