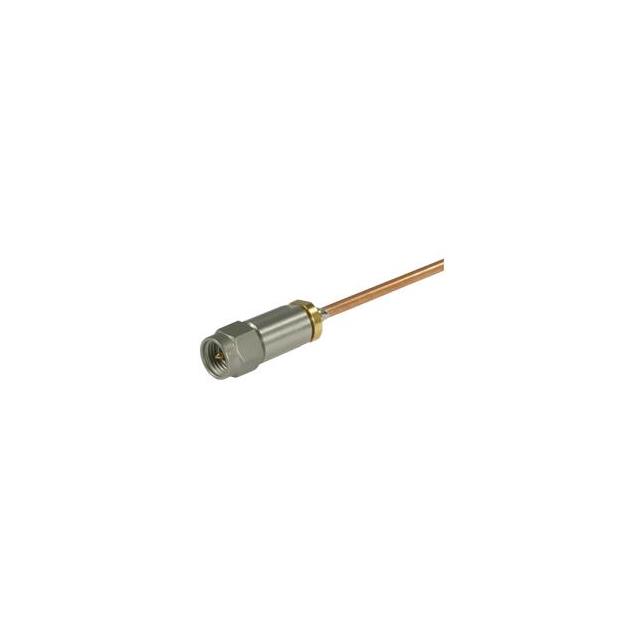

11_PC35-50-3-4/199_UE
ActiveHuber+Suhner, Inc.
RF CONNECTOR, MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11_PC35-50-3-4/199_UE
ActiveHuber+Suhner, Inc.
RF CONNECTOR, MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG, ROHS COMPLIANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 11_PC35-50-3-4/199_UE |
|---|---|
| Body Material | Stainless Steel |
| Cable Group | RG-141 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 3.5 mm |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polystyrene (PS) |
| Frequency - Max [Max] | 26.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -60 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 137.78 | |
Description
General part information
11_PC35-50 Series
3.5mm Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
