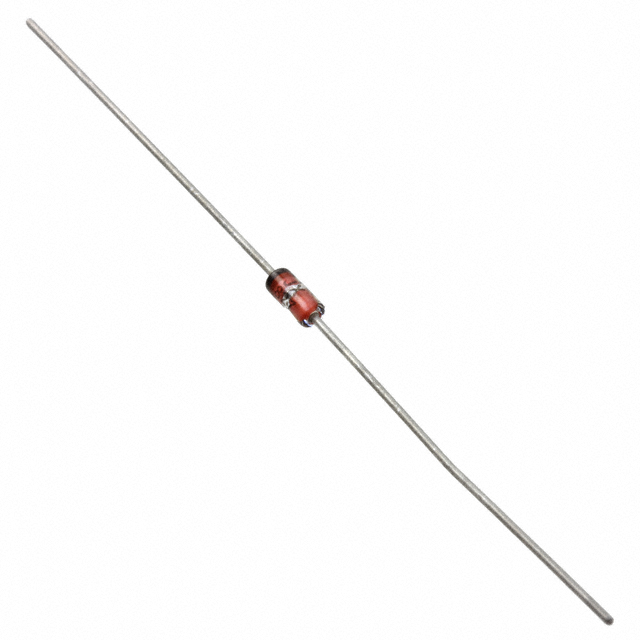

1N5523D-1
ActiveMicrosemi Corporation
DIODE ZENER 5.1V 500MW DO35
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N5523D-1
ActiveMicrosemi Corporation
DIODE ZENER 5.1V 500MW DO35
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N5523D-1 |
|---|---|
| Current - Reverse Leakage @ Vr | 2 µA |
| Impedance (Max) (Zzt) [Max] | 26 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | Axial, DO-35, DO-204AH |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | DO-204AH (DO-35) |
| Tolerance | 1 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 167 | $ 4.93 | |
Description
General part information
1N5523 Series
Zener Diode 5.1 V 500 mW ±1% Through Hole DO-204AH (DO-35)
Documents
Technical documentation and resources
