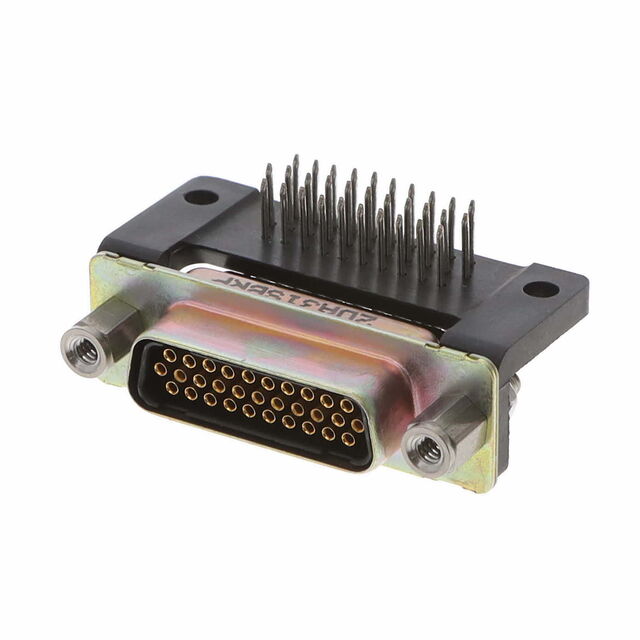

2DA31SBRP

Active

ITT Cannon, LLC

CONN D-SUB RCPT 31POS R/A SLDR

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN D-SUB RCPT 31POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	2DA31SBRP

Connector Style	Double Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Flange Feature	Female Screwlock (4-40), Mating Side
Mounting Type	Through Hole, Right Angle
Number of Positions	31
Number of Rows	3
Shell Material, Finish	Yellow Chromate Plated Cadmium, Steel
Shell Size, Connector Layout [custom]	DA, A
Shell Size, Connector Layout [custom]	2
Termination	Solder

Part	Contact Finish	Number of Rows	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Flange Feature	Termination	Contact Material	Mounting Type	Connector Type	Number of Positions	Shell Material, Finish	Contact Type
ITT Cannon, LLC 2DA31SBR	Gold	3	Glass Filled Nylon Polyamide (PA)	A DA	2	D-Sub Double Density	Housing/Shell (Unthreaded)	Solder	Copper Alloy	Through Hole Right Angle	Receptacle Female Sockets	31	Steel Yellow Chromate Plated Cadmium	Signal
ITT Cannon, LLC 2DA31SBRP	Gold	3	Glass Filled Nylon Polyamide (PA)	A DA	2	D-Sub Double Density	Female Screwlock (4-40) Mating Side	Solder	Copper Alloy	Through Hole Right Angle	Receptacle Female Sockets	31	Steel Yellow Chromate Plated Cadmium	Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

31 Position D-Sub, Double Density Receptacle, Female Sockets Connector
