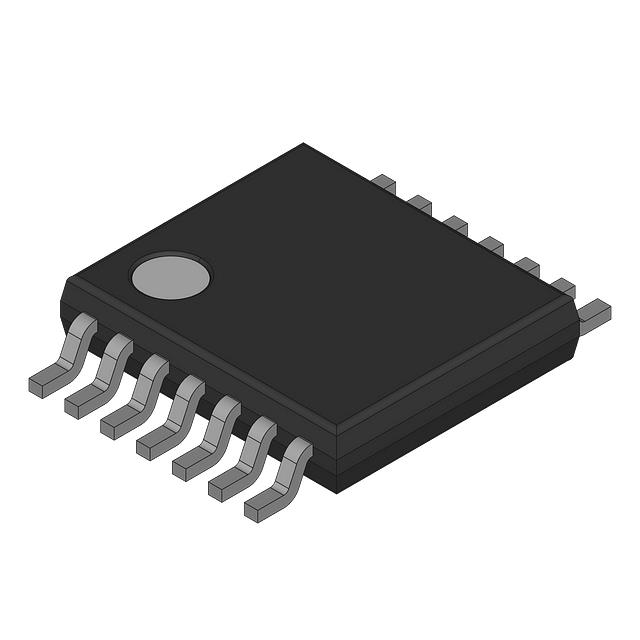

UCC27221PWP

Obsolete

Unitrode

HALF BRIDGE BASED MOSFET DRIVER

Search across all available documentation for this part.

Obsolete

Unitrode

HALF BRIDGE BASED MOSFET DRIVER

Technical Specifications

Parameters and characteristics for this part

Specification	UCC27221PWP

Channel Type	Synchronous
Current - Peak Output (Source, Sink) [custom]	4 A
Current - Peak Output (Source, Sink) [custom]	4 A
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET
Input Type	Inverting
Logic Voltage - VIL, VIH	0.7 V, 2.6 V
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-55 °C
Package / Case	14-PowerTSSOP
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Rise / Fall Time (Typ) [custom]	17 ns
Rise / Fall Time (Typ) [custom]	17 ns
Supplier Device Package	14-HTSSOP
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	3.7 V

Part	Mounting Type	Input Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Logic Voltage - VIL, VIH	Number of Drivers	Voltage - Supply [Max]	Voltage - Supply [Min]	Channel Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Gate Type	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Driven Configuration
Unitrode UCC27221PWP	Surface Mount	Inverting	17 ns	17 ns	0.7 V 2.6 V	2	20 V	3.7 V	Synchronous	4 A	4 A	115 °C	-55 °C	N-Channel MOSFET	14-PowerTSSOP	4.4 mm	0.173 in	14-HTSSOP	Half-Bridge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	129	$ 2.33

General part information

Half-Bridge Gate Driver IC Inverting 14-HTSSOP

Technical documentation and resources

No documents available
