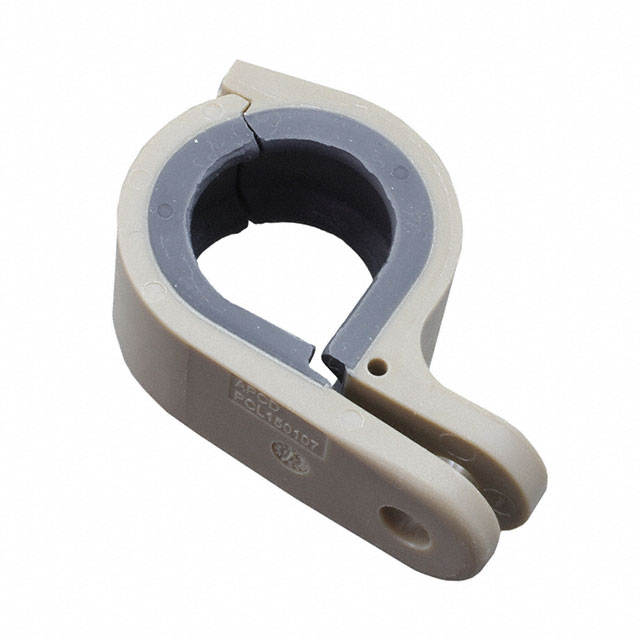

PCL150107

Active

AMPHENOL PCD

CBL CLAMP P-TYPE FASTENER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet System Attachments

PCL150107

Active

AMPHENOL PCD

CBL CLAMP P-TYPE FASTENER

Deep-Dive with AI

DocumentsDatasheet System Attachments

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCL150107

Bundle Center to Mounting Center	0.93 "
Bundle Center to Mounting Center	23.62 mm
Color	Tan, Gray
Features	Non-Conductive, Flame Retardant, Fuel Resistant, Protective Coating, Corrosion Resistant
Height [z]	30.48 mm
Height [z]	1.2 in
Length	1.84 "
Length	46.74 mm
Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Fastener
Opening Size	17.53 mm
Opening Size	0.69 in
Panel Hole Size	5.08 mm
Panel Hole Size	0.2 in
Screw Size	10-32
Type	Clamp, P-Type
Type Attributes	Hinged
Width	15.24 mm
Width	0.6 in

PCL150 Series

Part	Features	Height [z]	Height [z]	Type	Material	Length	Length	Screw Size	Mounting Type	Panel Hole Size	Panel Hole Size	Width	Width	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Material Flammability Rating	Opening Size [z]	Opening Size	Type Attributes	Color	Opening Size [z]	Length [x]	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Opening Size	Length [x]	Opening Size [diameter]	Opening Size [diameter]
AMPHENOL PCD PCL150112	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	44.7 mm	1.76 in	Clamp P-Type	Polyetheretherketone (PEEK)	59.94 mm	2.36 in	10-32	Fastener	5.08 mm	0.2 in	15.24 mm	0.6 in	1.18 in	29.97 mm	UL94 V-0	1.16 in	29.46 mm	Hinged	Gray Tan
AMPHENOL PCD PCL150110	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	37.59 mm	1.48 in	Clamp P-Type	Polyetheretherketone (PEEK)	53.85 mm		10-32	Fastener	5.08 mm	0.2 in	15.24 mm	0.6 in	1.07 in	27.18 mm	UL94 V-0	0.97 in		Hinged	Gray Tan	24.64 mm	2.12 in
AMPHENOL PCD PCL150102	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	18.03 mm	0.71 in	Clamp P-Type	Polyetheretherketone (PEEK)	32.26 mm	1.27 "	10-32	Fastener	5.08 mm	0.2 in	15.24 mm	0.6 in	0.64 in	16.26 mm	UL94 V-0	0.22 in		Hinged	Gray Tan	5.59 mm
AMPHENOL PCD PCL150103	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	20.58 mm	0.81 in	Clamp P-Type	Polyetheretherketone (PEEK)	35.81 mm	1.41 in	10-32	Fastener	5.08 mm	0.2 in	15.24 mm	0.6 in			UL94 V-0	0.31 in		Hinged	Gray Tan	7.87 mm		0.71 in	18.03 mm
AMPHENOL PCD PCL150107	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	30.48 mm	1.2 in	Clamp P-Type	Polyetheretherketone (PEEK)	46.74 mm	1.84 "	10-32	Fastener	5.08 mm	0.2 in	15.24 mm	0.6 in			UL94 V-0		17.53 mm	Hinged	Gray Tan			0.93 "	23.62 mm	0.69 in
AMPHENOL PCD PCL150115	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	52.07 mm	2.05 in	Clamp P-Type	Polyetheretherketone (PEEK)			10-32	Fastener	5.08 mm	0.2 in	15.24 mm	0.6 in	1.35 in	34.29 mm	UL94 V-0	1.44 in	36.58 mm	Hinged	Gray Tan		2.69 in				68.33 mm
AMPHENOL PCD PCL150104	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	22.35 mm	0.88 in	Clamp P-Type	Polyetheretherketone (PEEK)			10-32	Fastener	5.08 mm	0.2 in	15.24 mm	0.6 in	0.76 in	19.3 mm	UL94 V-0	0.41 in	10.41 mm	Hinged	Gray Tan		1.51 in				38.35 mm
AMPHENOL PCD PCL150105	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	24.38 mm	0.96 in	Clamp P-Type	Polyetheretherketone (PEEK)	40.64 mm	1.6 in	10-32	Fastener	5.08 mm	0.2 in	15.24 mm	0.6 in			UL94 V-0			Hinged	Gray Tan			0.81 in	20.57 mm			12.7 mm	0.5 in
AMPHENOL PCD PCL150114	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	49.02 mm	1.93 in	Clamp P-Type	Polyetheretherketone (PEEK)	65.53 mm	2.58 in	10-32	Fastener	5.08 mm	0.2 in	15.24 mm	0.6 in			UL94 V-0	1.34 in		Hinged	Gray Tan	34.04 mm		1.29 in	32.77 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.06
		10	$ 38.30
		25	$ 35.90
		50	$ 34.19
		100	$ 32.56
		250	$ 33.69
		300	$ 30.44

Description

General part information

PCL150 Series

Cable Clamp, P-Type Gray, Tan Fastener 0.690" (17.53mm)
