AL-08-120-9-C
ActiveAdvanced Cable Ties, Inc.

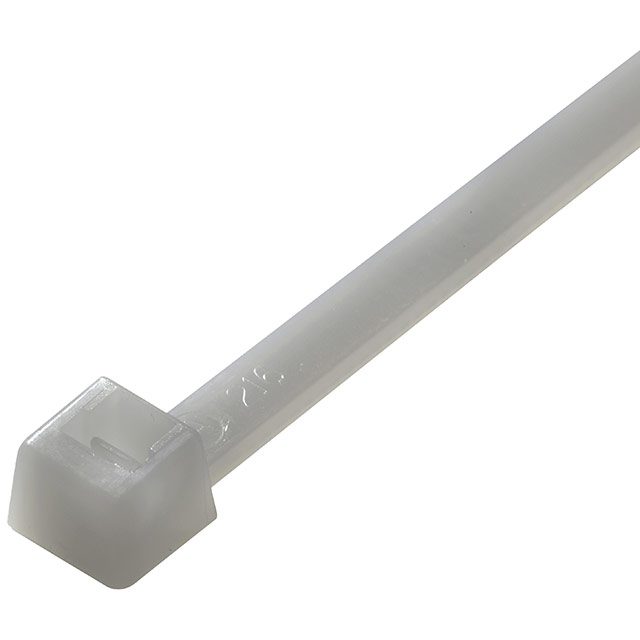

CBL TIE LOCKING NAT 120LBS 8.7"
Deep-Dive with AI
Search across all available documentation for this part.
AL-08-120-9-C
ActiveAdvanced Cable Ties, Inc.
CBL TIE LOCKING NAT 120LBS 8.7"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AL-08-120-9-C |
|---|---|
| Bundle Diameter | 52.32 mm |
| Bundle Diameter | 2.06 in |
| Color | Natural |
| Length - Actual [x] | 220.98 mm |
| Length - Actual [x] | 0.725 ft |
| Length - Actual [x] | 8.7 in |
| Length - Approximate | 8.75 in |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Tensile Strength | 54.43 kg |
| Tensile Strength | 120 lbs |
| Width | 7.62 mm |
| Width [x] | 0.3 " |
| Wire/Cable Tie Type | Standard, Locking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.08 | |
| 300 | $ 0.07 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.05 | |||
Description
General part information
AL-08-120 Series
Standard, Locking Natural 2.06" (52.32mm) 0.300" (7.62mm) 120 lbs (54.43 kg)
Documents
Technical documentation and resources
