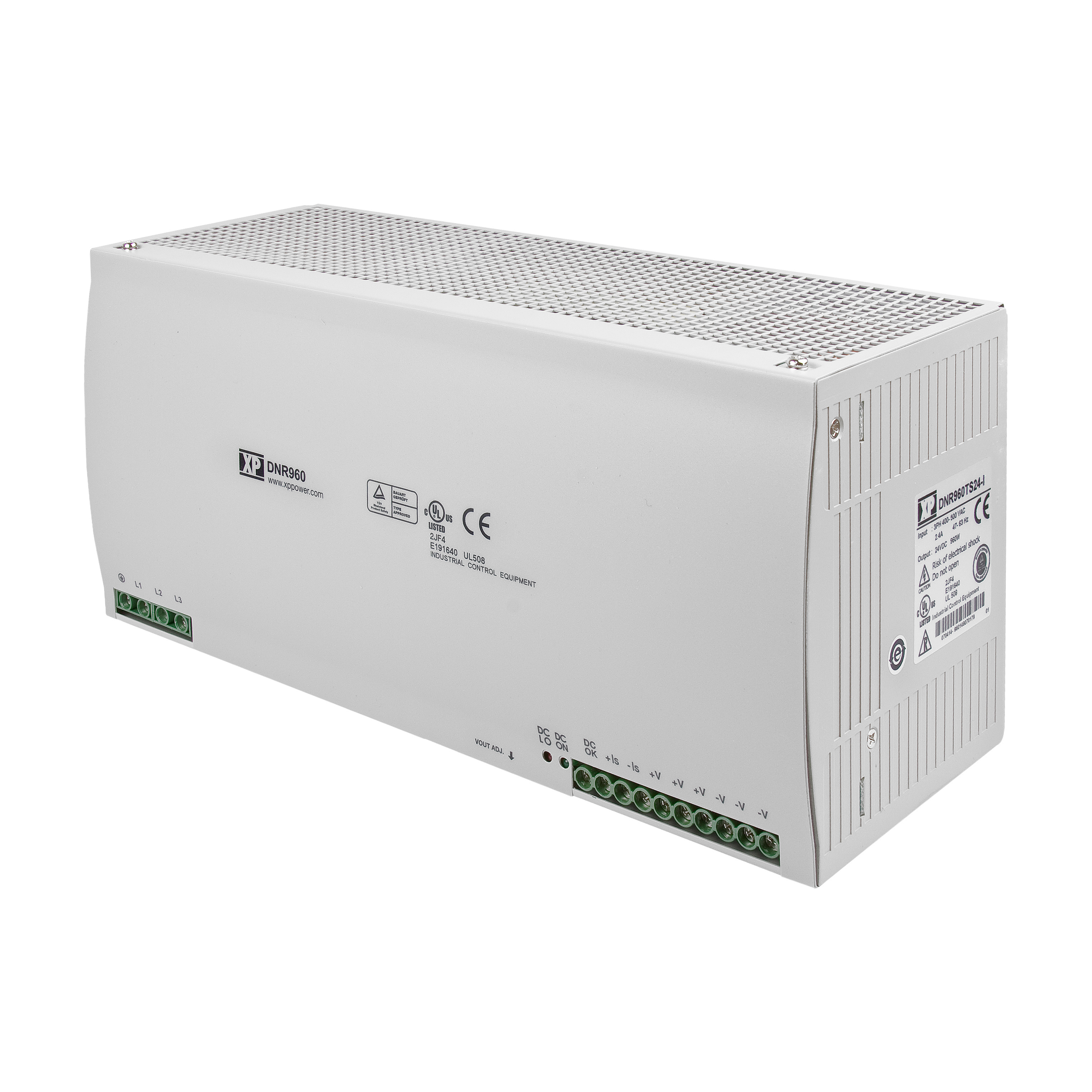

DNR960TS24-I

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 24V 960W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 24V 960W

Technical Specifications

Parameters and characteristics for this part

Specification	DNR960TS24-I

AC Voltage - Input [Max]	575 VAC
AC Voltage - Input [Min]	340 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Current - Output (Max) [Max]	40 A
Efficiency	92 %
Features	Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Power (Watts)	960 W
Size / Dimension [x]	111.3 mm
Size / Dimension [x]	4.39 in
Size / Dimension [y]	10.86 "
Size / Dimension [y]	275.7 mm
Size / Dimension [z]	4.96 "
Size / Dimension [z]	125.9 mm
Standard Number	62368-1
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 1	Standard Number	Efficiency	Input Type	Applications	Voltage - Isolation	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)
XP POWER DNR960TS24-I	40 A	1	24 V	62368-1	92 %	AC	Hazardous Locations Industrial ITE (Commercial)	3000 V	Adjustable Output Load Sharing	340 VAC	575 VAC	4.96 "	10.86 "	111.3 mm	125.9 mm	4.39 in	275.7 mm	960 W
