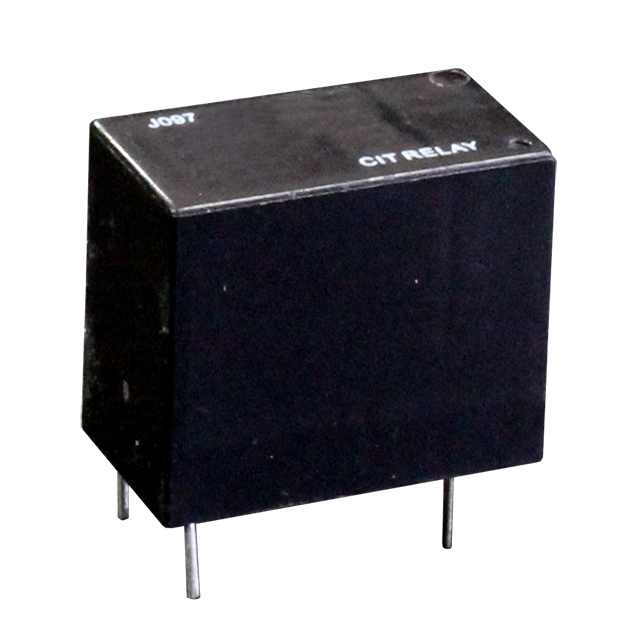

J0971CS3VDC.45

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 10A 3V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 10A 3V

Technical Specifications

Parameters and characteristics for this part

Part	Must Release Voltage	Mounting Type	Coil Resistance	Operate Time	Contact Material	Coil Current	Coil Voltage	Load - Max Switching [Max]	Coil Type	Contact Form	Switching Voltage [Max]	Seal Rating	Must Operate Voltage	Relay Type	Termination Style	Release Time	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]
CIT Relay and Switch J0971CS24VDC.45	2.4 VDC	Through Hole	1280 Ohms	10 ms	Silver Tin Oxide (AgSnO)	18.8 mA	24 VDC	2770 VA	Non Latching	SPDT (1 Form C)	277 VAC	Sealed - Fully	18 VDC	General Purpose	PC Pin	10 ms	10 A	-55 °C	125 °C
CIT Relay and Switch J0971CS18VDC.45	1.8 VDC	Through Hole	720 Ohms	10 ms	Silver Nickel (AgNi)		18 VDC	2770 VA	Non Latching	SPDT (1 Form C)	277 VAC	Sealed - Fully	13.5 VDC	General Purpose	PC Pin	10 ms	10 A	-55 °C	85 °C
CIT Relay and Switch J0971CS48VDC.45	4.8 VDC	Through Hole	5.12 kOhms	10 ms	Silver Tin Oxide (AgSnO)	9.4 mA	48 VDC	2770 VA	Non Latching	SPDT (1 Form C)	277 VAC	Sealed - Fully	36 VDC	General Purpose	PC Pin	10 ms	10 A	-55 °C	125 °C
CIT Relay and Switch J0971CS3VDC.45	0.3 VDC	Through Hole	20 Ohms	10 ms	Silver Nickel (AgNi)	150 mA		2770 VA	Non Latching	SPDT (1 Form C)	277 VAC	Sealed - Fully	2.25 VDC	General Purpose	PC Pin	10 ms	10 A	-55 °C	85 °C
CIT Relay and Switch J0971CS6VDC.45	0.6 VDC	Through Hole	80 Ohms	10 ms	Silver Nickel (AgNi)	75 mA		2770 VA	Non Latching	SPDT (1 Form C)	277 VAC	Sealed - Fully	4.5 VDC	General Purpose	PC Pin	10 ms	10 A	-55 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 0.76

General part information

General Purpose Relay SPDT (1 Form C) 3VDC Coil Through Hole
