Technical Specifications
Parameters and characteristics for this part
| Specification | REC3.5-4805DRW/R10/A/CTRL |
|---|---|
| Applications | ITE (Commercial), Medical |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 350 mA |
| Current - Output (Max) [Min] | 350 mA |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 7 Leads |
| Power (Watts) | 3.5 W |
| Size / Dimension [x] | 1.26 in |
| Size / Dimension [x] | 32 mm |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 10 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
REC3.5-S_DRW/R Series

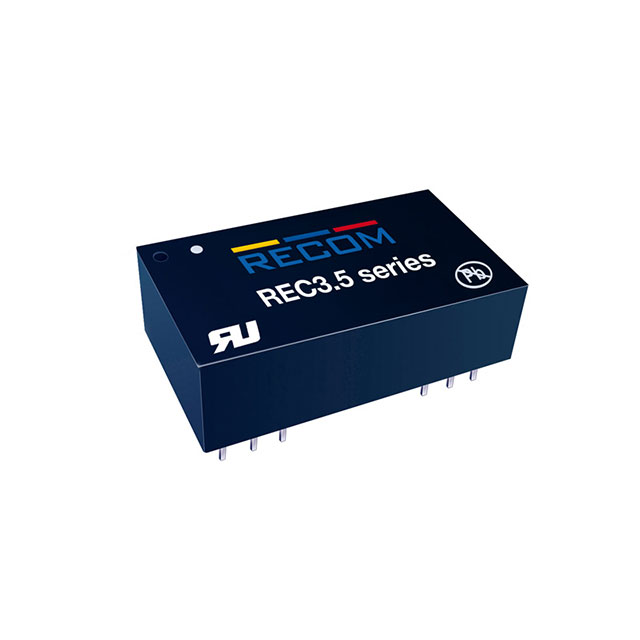

Isolated DC/DC Converters - Through Hole 3.5W DC/DC 10kV REG 5Vin 5Vout
...
| Part | Package / Case | Number of Outputs | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 2 | Voltage - Output 1 | Current - Output (Max) [Min] | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Features | Voltage - Isolation | Control Features | Type | Power (Watts) | Mounting Type | Applications | Efficiency | Package / Case | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power | 24-DIP Module 7 Leads | 2 | 75 V | 36 V | 85 °C | -40 °C | -5 V | 5 V | 350 mA | 350 mA | 0.4 " | 20.3 mm | 1.26 in | 10.2 mm | 32 mm | 0.8 in | Remote On/Off SCP | 10 kV | Active Low Enable | Isolated Module | 3.5 W | Through Hole | ITE (Commercial) Medical | |||||
RECOM Power | 24-DIP Module | 2 | 9 V | 4.5 V | 85 °C | -40 °C | -5 V | 5 V | 350 mA | 350 mA | 0.4 " | 20.3 mm | 1.26 in | 10.2 mm | 32 mm | 0.8 in | SCP | 8 kV | Isolated Module | 3.5 W | Through Hole | ITE (Commercial) Medical | 77 % | 9 PC Pad | ||||
RECOM Power | 24-DIP Module | 2 | 75 V | 36 V | 85 °C | -40 °C | -5 V | 5 V | 350 mA | 350 mA | 0.4 " | 20.3 mm | 1.26 in | 10.2 mm | 32 mm | 0.8 in | SCP | 8 kV | Isolated Module | 3.5 W | Through Hole | ITE (Commercial) Medical | 9 PC Pad | |||||
RECOM Power | 24-DIP Module 6 Leads | 1 | 18 V | 9 V | 85 °C | -40 °C | 12 V | 290 mA | 0.4 " | 20.3 mm | 1.26 in | 10.2 mm | 32 mm | 0.8 in | SCP | 8 kV | Isolated Module | 3.5 W | Through Hole | ITE (Commercial) Medical | ||||||||
RECOM Power | 24-DIP Module | 2 | 9 V | 4.5 V | 85 °C | -40 °C | -15 V | 15 V | 0.4 " | 20.3 mm | 1.26 in | 10.2 mm | 32 mm | 0.8 in | SCP | 8 kV | Isolated Module | 3.5 W | Through Hole | ITE (Commercial) Medical | 80 % | 9 PC Pad | 117 mA | 117 mA | ||||
RECOM Power | 24-DIP Module 6 Leads | 2 | 75 V | 36 V | 85 °C | -40 °C | -9 V | 9 V | 0.4 " | 20.3 mm | 1.26 in | 10.2 mm | 32 mm | 0.8 in | SCP UVLO | 10 kV | Isolated Module | 3.5 W | Through Hole | ITE (Commercial) Medical | 83 % | 194 mA | 194 mA | |||||
RECOM Power | 24-DIP Module | 2 | 18 V | 9 V | 85 °C | -40 °C | -5 V | 5 V | 350 mA | 350 mA | 0.4 " | 20.3 mm | 1.26 in | 10.2 mm | 32 mm | 0.8 in | SCP | 8 kV | Isolated Module | 3.5 W | Through Hole | ITE (Commercial) Medical | 80 % | 9 PC Pad | ||||
RECOM Power | 24-DIP Module | 2 | 9 V | 4.5 V | 85 °C | -40 °C | -12 V | 12 V | 0.4 " | 20.3 mm | 1.26 in | 10.2 mm | 32 mm | 0.8 in | SCP | 8 kV | Isolated Module | 3.5 W | Through Hole | ITE (Commercial) Medical | 9 PC Pad | 145 mA | 145 mA | |||||
RECOM Power | 24-DIP Module 7 Leads | 1 | 75 V | 36 V | 85 °C | -40 °C | 24 V | 145 mA | 0.4 " | 20.3 mm | 1.26 in | 10.2 mm | 32 mm | 0.8 in | Remote On/Off SCP UVLO | 8 kV | Active Low Enable | Isolated Module | 3.5 W | Through Hole | ITE (Commercial) Medical | 85 % | ||||||
RECOM Power | 24-DIP Module 6 Leads | 2 | 9 V | 4.5 V | 85 °C | -40 °C | -12 V | 12 V | 0.4 " | 20.3 mm | 1.26 in | 10.2 mm | 32 mm | 0.8 in | SCP | 8 kV | Isolated Module | 3.5 W | Through Hole | ITE (Commercial) Medical | 145 mA | 145 mA |
