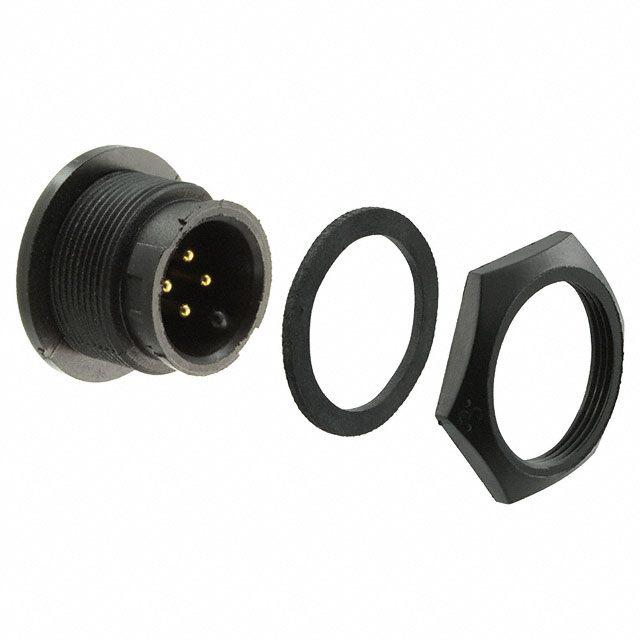

4382-4PG-3ES
ActiveConxall/Switchcraft
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4382-4PG-3ES
ActiveConxall/Switchcraft
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4382-4PG-3ES |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.98 | |
| 10 | $ 7.08 | |||
| 25 | $ 6.80 | |||
| 50 | $ 6.53 | |||
| 100 | $ 6.39 | |||
Description
General part information
4382-4PG Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
