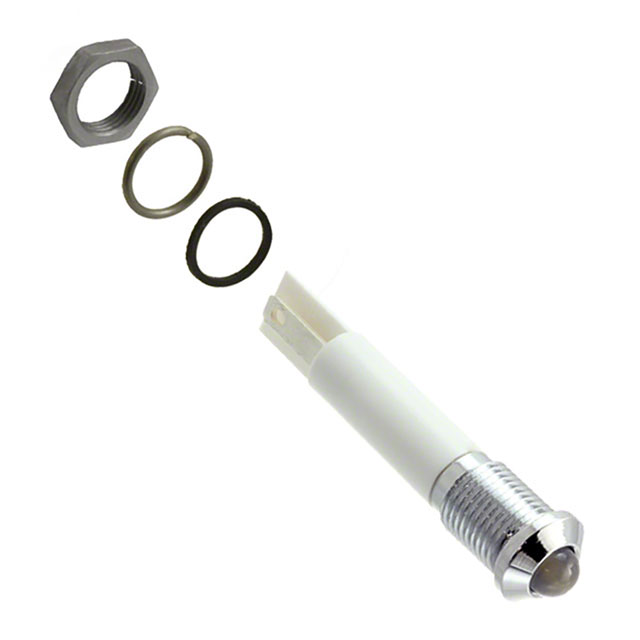

Q8P1CXXHW02E - Q8P1CXXHW24E

Q8P1CXXHW02E

Active
APEM

LED INDICATOR 8MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
Q8P1CXXHW02E - Q8P1CXXHW24E

Q8P1CXXHW02E

Active
APEM

LED INDICATOR 8MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationQ8P1CXXHW02E
Ingress ProtectionIP67
Lamp ColorWhite
Lens ColorWhite
Lens StyleRound with Domed Top
Lens TransparencyDiffused
Panel Cutout Dimensions8.13 mm
Panel Cutout Dimensions0.32 in
Panel Cutout ShapeRound
Termination StyleQuick Connect - 0.110" (2.8mm)
TypeLED
Voltage2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 21.57
25$ 15.97
100$ 14.60
500$ 13.49
NewarkEach 1$ 31.72
50$ 28.90
100$ 21.92
500$ 19.84
1000$ 16.68
2500$ 16.00
5000$ 15.65
10000$ 15.33

Description

General part information

Q8P1CXXHW Series

LED Panel Indicator White Diffused 2V 20mA Quick Connect - 0.110" (2.8mm)
