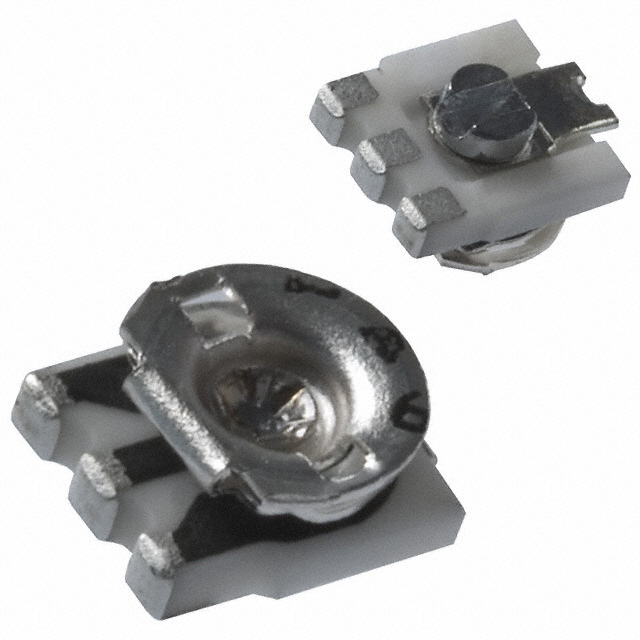

3310Y-011-203L

Active

Bourns Inc.

POT 20K OHM 1/4W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3310Y-011-203L

Active

Bourns Inc.

POT 20K OHM 1/4W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3310Y-011-203L

Actuator Diameter [diameter]	0.125 in
Actuator Diameter [diameter]	3.18 mm
Actuator Length [z]	19.05 mm
Actuator Length [z]	0.75 in
Actuator Type	Slotted
Adjustment Type	Top Adjustment
Built in Switch	False
Bushing Thread	1/4-32
Features	Sealed
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance (Ohms)	20 kOhms
Resistive Material	Conductive Plastic
Rotation	300 ░
Size - Body [x]	9.53 mm
Size - Body [x]	0.375 "
Size - Body [y]	0.375 in
Size - Body [y]	9.53 mm
Taper	Linear
Temperature Coefficient	1000 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

3310Y Series

Part	Mounting Type	Adjustment Type	Tolerance	Number of Turns	Features	Taper	Temperature Coefficient	Actuator Type	Resistance (Ohms)	Termination Style	Number of Gangs	Power (Watts)	Power (Watts)	Actuator Length [z]	Actuator Length [z]	Rotation	Resistive Material	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Length [x]	Actuator Length	Bushing Thread	Resistance (Ohms)
Bourns Inc. 3310Y-125-203L	Through Hole	Top Adjustment	20 %	1	Sealed	Linear	1000 ppm/°C	Flatted	20 kOhms	PC Pins	1	0.25 W	250 mW	0.22 in	5.59 mm	300 ░	Conductive Plastic	9.53 mm	0.375 in	9.53 mm	0.375 "	0.125 in	3.18 mm
Bourns Inc. 3310Y-002-104L		Top Adjustment	20 %	1	Sealed	Linear	1000 ppm/°C	Slotted	100 kOhms	PC Pins	1	0.25 W	250 mW			300 ░	Conductive Plastic	9.53 mm	0.375 in	9.53 mm	0.375 "	0.125 in	3.18 mm	0.5 in	12.7 mm	1/4-32
Bourns Inc. 3310Y-101-102L		Top Adjustment	20 %	1	Sealed	Linear	1000 ppm/°C	Flatted	1 kOhms	PC Pins	1	0.25 W	250 mW			300 ░	Conductive Plastic	9.53 mm	0.375 in	9.53 mm	0.375 "	0.125 in	3.18 mm	0.5 in	12.7 mm	1/4-32
Bourns Inc. 3310Y-101-503L		Top Adjustment	20 %	1	Sealed	Linear	1000 ppm/°C	Flatted	50 kOhms	PC Pins	1	0.25 W	250 mW			300 ░	Conductive Plastic	9.53 mm	0.375 in	9.53 mm	0.375 "	0.125 in	3.18 mm	0.5 in	12.7 mm	1/4-32
Bourns Inc. 3310Y-001-104L		Top Adjustment	20 %	1	Sealed	Linear	1000 ppm/°C	Slotted	100 kOhms	PC Pins	1	0.25 W	250 mW			300 ░	Conductive Plastic	9.53 mm	0.375 in	9.53 mm	0.375 "	0.125 in	3.18 mm	0.5 in	12.7 mm	1/4-32
Bourns Inc. 3310Y-001-202		Top Adjustment	20 %	1	Sealed	Linear	1000 ppm/°C	Slotted		PC Pins	1	0.25 W	250 mW			300 ░	Conductive Plastic	9.53 mm	0.375 in	9.53 mm	0.375 "	0.125 in	3.18 mm	0.5 in	12.7 mm	1/4-32	2k
Bourns Inc. 3310Y-101-203L		Top Adjustment	20 %	1	Sealed	Linear	1000 ppm/°C	Flatted	20 kOhms	PC Pins	1	0.25 W	250 mW			300 ░	Conductive Plastic	9.53 mm	0.375 in	9.53 mm	0.375 "	0.125 in	3.18 mm	0.5 in	12.7 mm	1/4-32
Bourns Inc. 3310Y-011-503L		Top Adjustment	20 %	1	Sealed	Linear	1000 ppm/°C	Slotted	50 kOhms	PC Pins	1	0.25 W	250 mW	0.75 in	19.05 mm	300 ░	Conductive Plastic	9.53 mm	0.375 in	9.53 mm	0.375 "	0.125 in	3.18 mm			1/4-32
Bourns Inc. 3310Y-011-502L		Top Adjustment	20 %	1	Sealed	Linear	1000 ppm/°C	Slotted	5 kOhms	PC Pins	1	0.25 W	250 mW	0.75 in	19.05 mm	300 ░	Conductive Plastic	9.53 mm	0.375 in	9.53 mm	0.375 "	0.125 in	3.18 mm			1/4-32
Bourns Inc. 3310Y-011-203L		Top Adjustment	20 %	1	Sealed	Linear	1000 ppm/°C	Slotted	20 kOhms	PC Pins	1	0.25 W	250 mW	0.75 in	19.05 mm	300 ░	Conductive Plastic	9.53 mm	0.375 in	9.53 mm	0.375 "	0.125 in	3.18 mm			1/4-32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	250	$ 3.13

Description

General part information

3310Y Series

20k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W PC Pins
