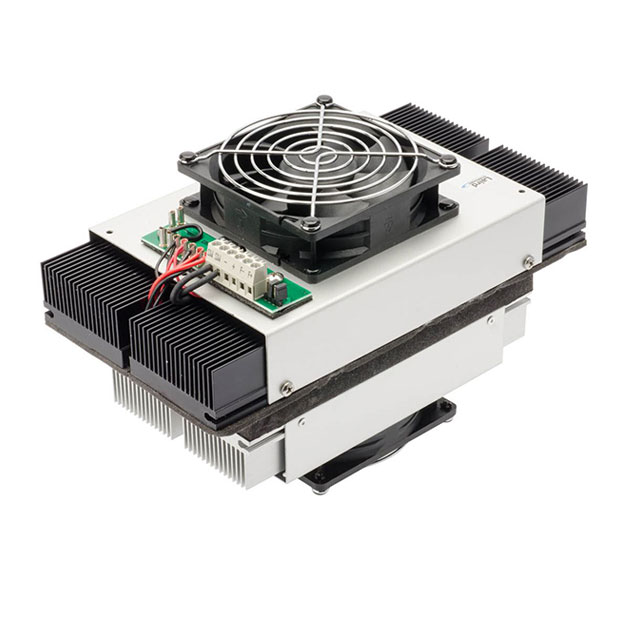

AAC-050-24-22-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 49W
Deep-Dive with AI
Search across all available documentation for this part.
AAC-050-24-22-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 49W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AAC-050-24-22-00-00 |
|---|---|
| Current | 4.7 A |
| Dimensions - Overall [x] | 230 mm |
| Dimensions - Overall [y] | 122 mm |
| Dimensions - Overall [z] | 151 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] | 47 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 49 W |
| Power - Input | 113 W |
| Voltage | 24 V |
| Weight | 2.7 kg |
| Weight | 6 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 628.87 | |
| 5 | $ 589.56 | |||
| 10 | $ 573.84 | |||
Description
General part information
AAC050-24 Series
Air to Air Thermoelectric Assembly 49 W
Documents
Technical documentation and resources
