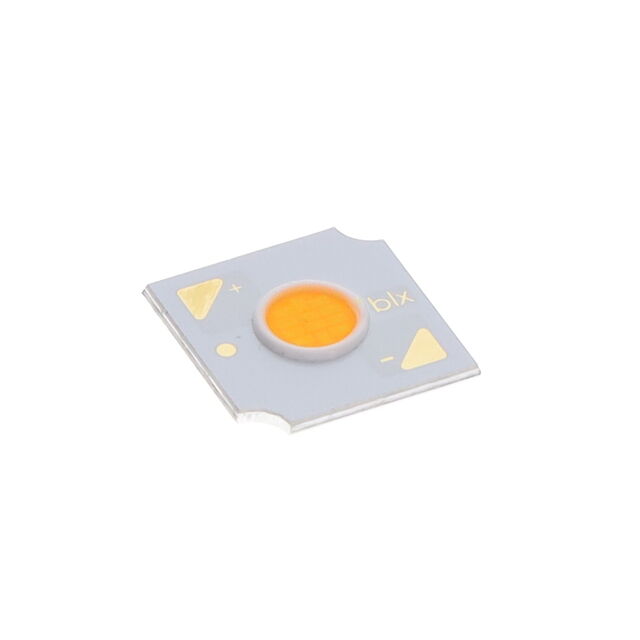

BXRH-25E0600-A-83
ActiveBRIDGELUX
LED COB V4 HD WARM WHT SQU 2500K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BXRH-25E0600-A-83 |
|---|---|
| CCT (K) | 2500 K |
| Color | White, Warm |
| Configuration | Square |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 300 mA |
| Current - Test | 175 mA |
| Height [z] | 1.63 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 4.8 mm |
| Size / Dimension [x] | 12.5 mm |
| Size / Dimension [y] | 12.5 mm |
| Type | Chip On Board (COB) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 36.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.44 | |
| 10 | $ 1.59 | |||
| 100 | $ 1.16 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.94 | |||
| 2000 | $ 0.89 | |||
| 5000 | $ 0.85 | |||
| 10000 | $ 0.82 | |||
Description
General part information
BXRH-25 Series
LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 V4 HD LED Array White, Warm Square
