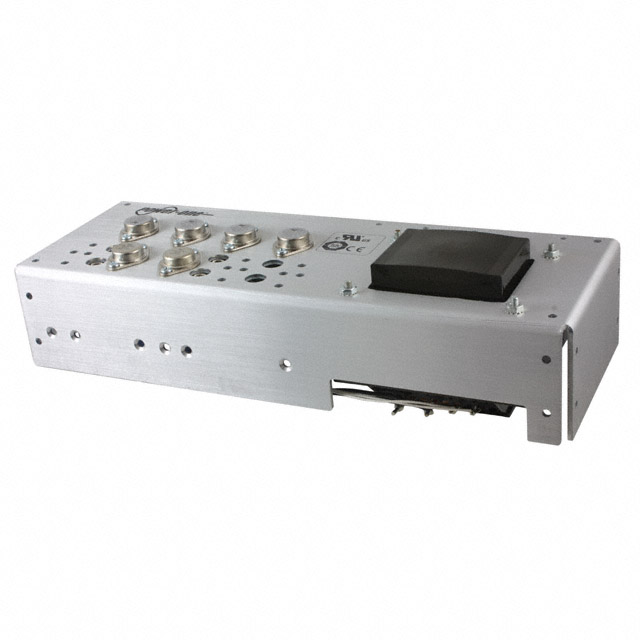

HE5-18/OVP-AG

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 5V 18A 90W CASE E

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 5V 18A 90W CASE E

Technical Specifications

Parameters and characteristics for this part

Specification	HE5-18/OVP-AG

Applications	ITE (Commercial)
Approval Agency	UL, CSA, CE
Current - Output 1	18 A
Efficiency	45 %
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	90 W
Size / Dimension [x]	14 in
Size / Dimension [x]	355.6 mm
Size / Dimension [y]	123.7 mm
Size / Dimension [y]	4.87 in
Size / Dimension [z]	3.53 "
Size / Dimension [z]	89.7 mm
Standard Number	60950-1, 62368-1
Type	Linear
Voltage - Input	240 VAC, 120 VAC, 220 VAC, 230 VAC, 100 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	5 V

Part	Power (Watts)	Applications	Efficiency	Current - Output 1	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Features	Type	Voltage - Isolation	Approval Agency	Mounting Type	Number of Outputs	Voltage - Input	Voltage - Output 1
EOS Power India Private Ltd HE5-18/OVP-AG	90 W	ITE (Commercial)	45 %	18 A	60950-1 62368-1	123.7 mm	3.53 "	4.87 in	14 in	355.6 mm	89.7 mm	Adjustable Output Remote Sense	Linear	4.242 kV	CE CSA UL	Chassis Mount	1	100 VAC 120 VAC 220 VAC 230 VAC 240 VAC	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear AC DC Converters 1 Output 5V 100, 120, 220, 230, 240 VAC Input
