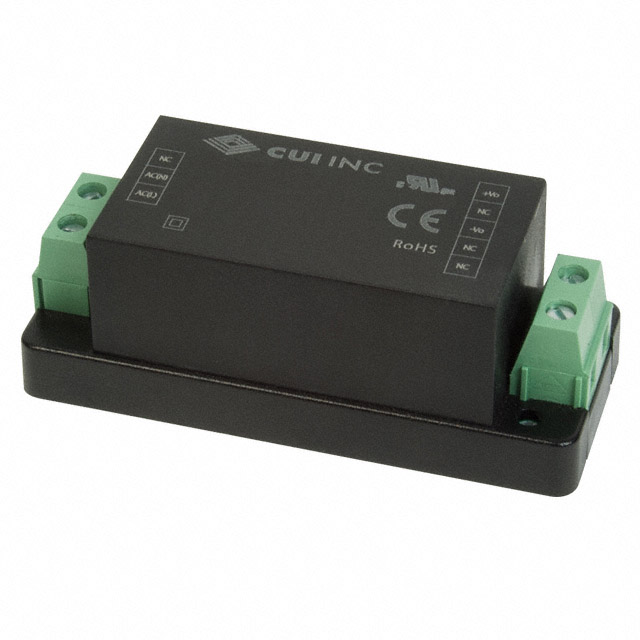

VSK-S10-3R3UA-T

Obsolete

CUI Inc.

AC/DC CONVERTER 3.3V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Supply Safety Standards, Agencies, and Marks Datasheet

VSK-S10-3R3UA-T

Obsolete

CUI Inc.

AC/DC CONVERTER 3.3V 10W

Deep-Dive with AI

DocumentsPower Supply Safety Standards, Agencies, and Marks Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VSK-S10-3R3UA-T

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	2 A
Efficiency	70 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	10 W
Size / Dimension [x]	2.99 in
Size / Dimension [x]	76 mm
Size / Dimension [y]	31.5 mm
Size / Dimension [y]	1.24 in
Size / Dimension [z]	1.09 "
Size / Dimension [z]	27.8 mm
Type	Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	3.3 V

VSK-S10 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Applications	Voltage - Isolation	Power (Watts)	Type	Approval Agency	Current - Output 1	Number of Outputs	Efficiency	Standard Number	Line Regulation	Package / Case	Load Regulation	Weight	Weight	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]
CUI Inc. VSK-S10-12UA-T	70 °C	-25 °C	Chassis Mount	Universal Input	1.09 "	2.99 in	27.8 mm	76 mm	31.5 mm	1.24 in	12 V	ITE (Commercial)	4000 V	10 W	Enclosed	CE cURus	900 mA	1	76 %
CUI Inc. VSK-S10-9UA-T	70 °C	-25 °C	Chassis Mount	Universal Input	1.09 "	2.99 in	27.8 mm	76 mm	31.5 mm	1.24 in	9 V	ITE (Commercial)	4000 V	10 W	Enclosed	CE cURus	1.1 A	1	76 %
CUI Inc. VSK-S10-15UA-T	70 °C	-25 °C	Chassis Mount	Universal Input	1.09 "	2.99 in	27.8 mm	76 mm	31.5 mm	1.24 in	15 V	ITE (Commercial)	4000 V	10 W	Enclosed	CE cURus	700 mA	1	78 %
CUI Inc. VSK-S10-3R3UA-T	70 °C	-25 °C	Chassis Mount	Universal Input	1.09 "	2.99 in	27.8 mm	76 mm	31.5 mm	1.24 in	3.3 V	ITE (Commercial)	4000 V	10 W	Enclosed	CE cURus	2 A	1	70 %
CUI Inc. VSK-S10-24UA-T	70 °C	-25 °C	Chassis Mount	Universal Input	1.09 "	2.99 in	27.8 mm	76 mm	31.5 mm	1.24 in	24 V	ITE (Commercial)	4000 V	10 W	Enclosed	CE cURus	450 mA	1	80 %
CUI Inc. VSK-S10-5UA	70 °C	-25 °C	Through Hole	Universal Input	0.75 in	2.1 in		53.3 mm		1.12 in	5 V	ITE (Commercial)		10 W	Enclosed	CE cURus EN UL		1	74 %	60950-1	0.5 %	4-DIP Module	1 %	0.119 lb	53.98 g	2 A	28.5 mm	19.5 mm
CUI Inc. VSK-S10-9UA	70 °C	-25 °C	Through Hole	Universal Input	0.75 in	2.1 in		53.3 mm		1.12 in	9 V	ITE (Commercial)		10 W	Enclosed	CE cURus EN UL		1	76 %	60950-1	0.5 %	4-DIP Module	1 %	0.117 lb	53.07 g		28.5 mm	19.5 mm
CUI Inc. VSK-S10-24UA	70 °C	-25 °C	Through Hole	Universal Input	0.75 in	2.1 in		53.3 mm		1.12 in	24 V	ITE (Commercial)		10 W	Enclosed	CE cURus EN UL		1	80 %	60950-1	0.5 %	4-DIP Module	1 %	0.117 lb	53.07 g	450 mA	28.5 mm	19.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 32.64
		5	$ 30.75
		10	$ 29.97
		25	$ 28.97
		40	$ 28.47
