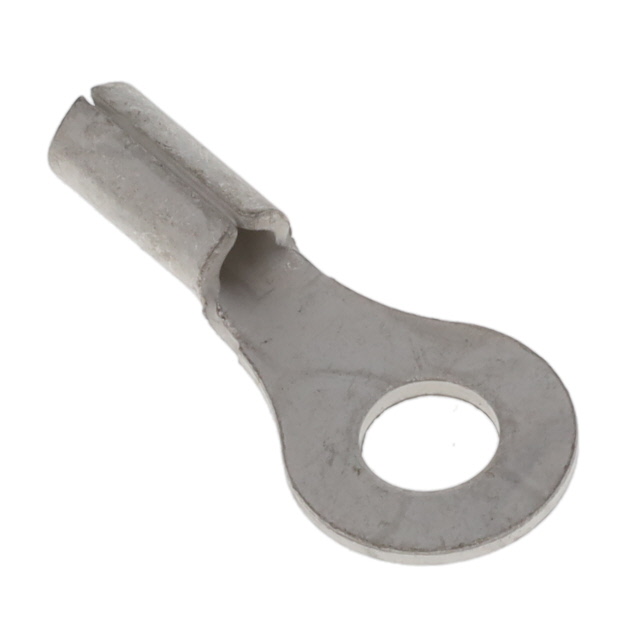

0190560013

Active

Molex

CONN RING CIRC 18-22AWG #6 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0190440069 Drawing/Datasheet

0190560013

Active

Molex

CONN RING CIRC 18-22AWG #6 CRIMP

Deep-Dive with AI

DocumentsDatasheet 0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190560013

Contact Finish	Electro-Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Non-Insulated
Length - Overall	18.29 mm
Length - Overall	0.72 "
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.71 mm
Thickness	0.028 in
Width - Outer Edges [y]	7.92 mm
Width - Outer Edges [y]	0.312 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019056 Series

Part	Contact Finish	Contact Material	Insulation	Stud/Tab Size	Termination	Terminal Type	Features	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Mounting Type	Stud/Tab Size	Length - Overall	Length - Overall	Wire Gauge [Max]	Wire Gauge [Min]
Molex 0190560215	Electro-Tin	Copper	Non-Insulated	0.3125 Stud	Crimp	Circular	Brazed Seam	23.27 mm	0.916 in	11.86 mm	0.467 in	0.031 in	0.79 mm	Free Hanging (In-Line)
Molex 0190560221	Electro-Tin	Copper	Non-Insulated	10 Stud	Crimp	Circular	Brazed Seam	19.69 mm	0.775 in	8.69 mm	0.342 in	0.031 in	0.79 mm	Free Hanging (In-Line)
Molex 0190560057	Electro-Tin	Copper	Non-Insulated		Crimp	Circular	Brazed Seam	28.32 mm	1.115 "			0.031 in	0.79 mm	Free Hanging (In-Line)	3/8 Stud
Molex 0190560018	Electro-Tin	Copper	Non-Insulated	10 Stud	Crimp	Circular	Brazed Seam			7.92 mm	0.312 in	0.028 in	0.71 mm	Free Hanging (In-Line)		18.29 mm	0.72 "	22 AWG	17.5 AWG
Molex 0190560217	Electro-Tin	Copper	Non-Insulated	6 Stud	Crimp	Circular	Brazed Seam	16.23 mm	0.639 in	6.35 mm	0.25 "	0.031 in	0.79 mm	Free Hanging (In-Line)
Molex 0190560142			Non-Insulated	10 Stud	Crimp	Circular
Molex 0190560037	Electro-Tin	Copper	Non-Insulated	6 Stud	Crimp	Circular	Brazed Seam	16.8 mm	0.661 in	6.45 mm	0.254 in	0.028 in	0.71 mm	Free Hanging (In-Line)				22 AWG	17.5 AWG
Molex 0190560065	Electro-Tin	Copper	Non-Insulated	6 Stud	Crimp	Circular	Brazed Seam	16.23 mm	0.639 in	6.35 mm	0.25 "	0.031 in	0.79 mm	Free Hanging (In-Line)
Molex 0190560013	Electro-Tin	Copper	Non-Insulated	6 Stud	Crimp	Circular	Brazed Seam			7.92 mm	0.312 in	0.028 in	0.71 mm	Free Hanging (In-Line)		18.29 mm	0.72 "	22 AWG	17.5 AWG
Molex 0190560219	Electro-Tin	Copper	Non-Insulated	0.25 Stud	Crimp	Circular	Brazed Seam	23.27 mm	0.916 in	11.86 mm	0.467 in	0.031 in	0.79 mm	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.18
		10	$ 0.15
		100	$ 0.11
		1000	$ 0.09

Description

General part information

019056 Series

Ring Terminal Connector 6 Stud Circular 18-22 AWG Crimp

Documents

Technical documentation and resources

Datasheet

0190440069 Drawing/Datasheet

Datasheet
