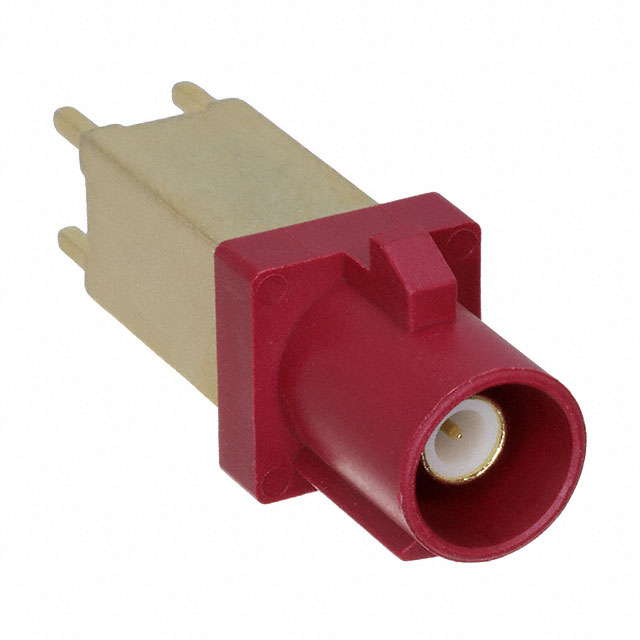

RF55-25L-T-00-50-G-SH

Active

Adam Tech

1 SMB HEADER 4GHZ 50Ω PLUGIN COAXIAL CONNECTORS (RF) ROHS

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RF55-25L-T-00-50-G-SH

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code L
Frequency - Max [Max]	4 GHz
Housing Color	Carmine, Red
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

RF55-25 Series

Part	Mounting Type	Body Material	Number of Ports	Impedance	Dielectric Material	Center Contact Material	Center Contact Plating	Body Finish	Shield Termination	Fastening Type	Housing Color	Connector Type	Contact Termination	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Features	Frequency - Max [Max]
Adam Tech RF55-25F-T-00-50-G-SH	Through Hole	Brass	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Gold	Gold	Solder	Locking Ramp	Brown	Male Pin Plug	Solder	Fakra SMB	85 °C	-40 °C	Code F	4 GHz
Adam Tech RF55-25N-T-00-50-G-SH	Through Hole	Brass	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Gold	Gold	Solder	Locking Ramp	Green Pastel	Male Pin Plug	Solder	Fakra SMB	85 °C	-40 °C	Code N	4 GHz
Adam Tech RF55-25L-T-00-50-G-SH	Through Hole	Brass	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Gold	Gold	Solder	Locking Ramp	Carmine Red	Male Pin Plug	Solder	Fakra SMB	85 °C	-40 °C	Code L	4 GHz
Adam Tech RF55-25Z-T-00-50-G-SH	Through Hole	Brass	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Gold	Gold	Solder	Locking Ramp		Male Pin Plug	Solder	Fakra SMB	85 °C	-40 °C	Code Z	4 GHz
Adam Tech RF55-25B-T-00-50-G-SH	Through Hole	Brass	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Gold	Gold	Solder	Locking Ramp	White	Male Pin Plug	Solder	Fakra SMB	85 °C	-40 °C	Code B	4 GHz
Adam Tech RF55-25E-T-00-50-G-SH	Through Hole	Brass	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Gold	Gold	Solder	Locking Ramp	Green	Male Pin Plug	Solder	Fakra SMB	85 °C	-40 °C	Code E	4 GHz
Adam Tech RF55-25G-T-00-50-G-SH	Through Hole	Brass	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Gold	Gold	Solder	Locking Ramp	Gray	Male Pin Plug	Solder	Fakra SMB	85 °C	-40 °C	Code G	4 GHz
Adam Tech RF55-25H-T-00-50-G-SH	Through Hole	Brass	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Gold	Gold	Solder	Locking Ramp	Violet	Male Pin Plug	Solder	Fakra SMB	85 °C	-40 °C	Code H	4 GHz
