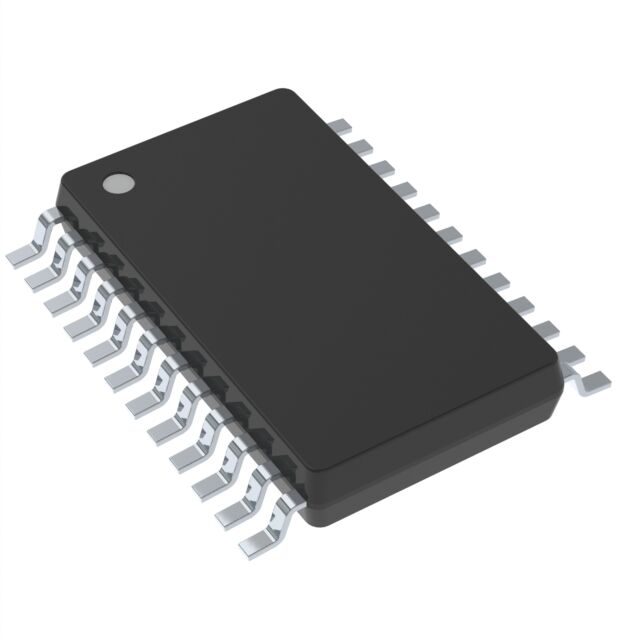

SA639DH/01,118
ObsoleteFreescale Semiconductor - NXP
IC MIXER 500MHZ UP CONV 24TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SA639DH/01,118
ObsoleteFreescale Semiconductor - NXP
IC MIXER 500MHZ UP CONV 24TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SA639DH/01,118 |
|---|---|
| Current - Supply | 10 mA |
| Frequency | 500 MHz |
| Gain | 9.2 dBd |
| Mounting Type | Surface Mount |
| Noise Figure | 11 dB |
| Number of Mixers | 2 |
| Package / Case | 24-TSSOP |
| Package / Case | 0.173 in, 4.4 mm |
| RF Type | FSK, DECT, ASK |
| Secondary Attributes | Up Converter |
| Supplier Device Package | 24-TSSOP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SA639 Series
RF Mixer IC ASK, DECT, FSK Up Converter 500MHz 24-TSSOP
