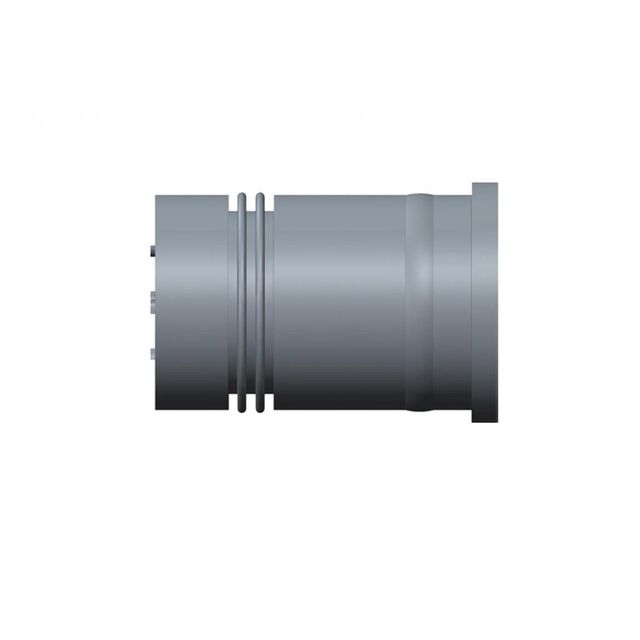

SLD-A005001

Active

Amphenol LTW

M SERIES, ACCESSORY, 4A, 05 PINS

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, ACCESSORY, 4A, 05 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	SLD-A005001

Color	Black
Connector Type	Insert, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M12-5
Shielding	Unshielded
Voltage Rating	60 VDC

Part	Contact Finish - Mating	Connector Type	Number of Positions	Shell Material	Contact Material	Insert Material	Voltage Rating	Shell Size - Insert	Current Rating (Amps)	Color	Shielding	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Fastening Type	Primary Material
Amphenol LTW SLD-A004001	Gold	Insert Male Pins	4	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Polyamide (PA) Nylon Glass Filled	250 VDC	M12-4	4 A	Black	Unshielded	A	-40 °C	105 ░C	Free Hanging (In-Line)	Push-Pull	Plastic
Amphenol LTW SLD-A005001	Gold	Insert Male Pins		Glass Filled Nylon Polyamide (PA)	Copper Alloy	Polyamide (PA) Nylon Glass Filled	60 VDC	M12-5	4 A	Black	Unshielded	A	-40 °C	105 ░C	Free Hanging (In-Line)	Push-Pull	Plastic
Amphenol LTW SLD-A004002	Gold	Insert Male Pins	4		Copper Alloy	Nylon Polyamide (PA)	250 VDC	M12-4	4 A	Black	Unshielded	A	-40 °C	105 ░C	Free Hanging (In-Line)	Push-Pull	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 2.71

General part information

5 Position Circular Connector Insert, Male Pins Solder Cup
