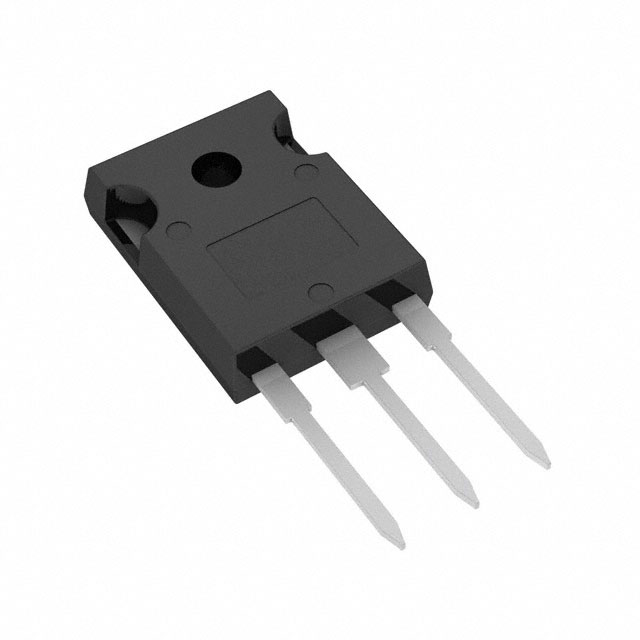

SCT4062KEHRC11 - TO-247N

SCT4062KEHRC11

Active
Rohm Semiconductor

1200V, 26A, 3-PIN THD, TRENCH-STRUCTURE, SILICON-CARBIDE (SIC) MOSFET FOR AUTOMOTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSimulation Verification to Identify Oscillation between Parallel Dies during Design Phase of Power ModulesPackage Dimensions+45
SCT4062KEHRC11 - TO-247N

SCT4062KEHRC11

Active
Rohm Semiconductor

1200V, 26A, 3-PIN THD, TRENCH-STRUCTURE, SILICON-CARBIDE (SIC) MOSFET FOR AUTOMOTIVE

Deep-Dive with AI

DocumentsSimulation Verification to Identify Oscillation between Parallel Dies during Design Phase of Power ModulesPackage Dimensions+45

Technical Specifications

Parameters and characteristics for this part

SpecificationSCT4062KEHRC11
Current - Continuous Drain (Id) @ 25°C26 A
Drain to Source Voltage (Vdss)1200 V
Drive Voltage (Max Rds On, Min Rds On)18 V
FET TypeN-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]64 nC
GradeAutomotive
Input Capacitance (Ciss) (Max) @ Vds1498 pF
Mounting TypeThrough Hole
Operating Temperature175 °C
Package / CaseTO-247-3
Power Dissipation (Max) [Max]115 W
QualificationAEC-Q101
Rds On (Max) @ Id, Vgs81 mOhm
Supplier Device PackageTO-247N
Vgs (Max) [Max]21 V
Vgs (Max) [Min]-4 V
Vgs(th) (Max) @ Id4.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 13.96
10$ 9.79
450$ 7.05
NewarkEach 1$ 15.55
10$ 13.71
25$ 13.04
50$ 12.38
100$ 11.70
250$ 11.03
900$ 10.37

Description

General part information

SCT4062KEHR Series

AEC-Q101 qualified automotive grade product. SCT4062KEHR is an SiC (Silicon Carbide) trench MOSFET. Features include high voltage resistance, low ON resistance, and fast switching speed.Advantages of ROHM's 4th Generation SiC MOSFETThis series has about 40% reduction in on-resistance and about 50% reduction in switching loss compared to conventional products. The 15V gate-source voltage makes application design easier.
