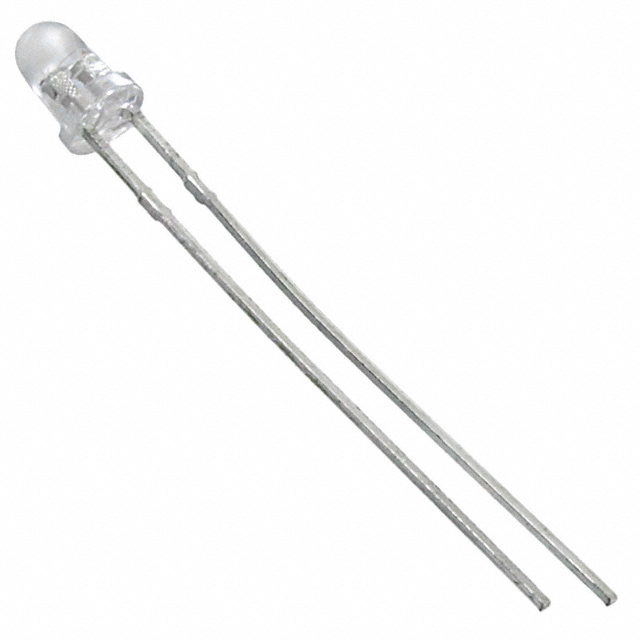

3BCC-F
ActiveBivar Inc.
LED, GREEN, RED, THROUGH HOLE, T-1 (3MM), 45 °, ROUND, R 20MA, G 20MA
Deep-Dive with AI
Search across all available documentation for this part.
3BCC-F
ActiveBivar Inc.
LED, GREEN, RED, THROUGH HOLE, T-1 (3MM), 45 °, ROUND, R 20MA, G 20MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3BCC-F |
|---|---|
| Color | Red, Green |
| Configuration | Bidirectional |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] | 5.3 mm |
| Lens Color | Colorless |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 8mcd Red, 8mcd Green |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 3 mm |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 2.1 V |
| Wavelength - Peak | 568 nm, 625 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3BCC-F Series
Green, Red LED Indication - Discrete 2.1V Green, 2V Red Radial
