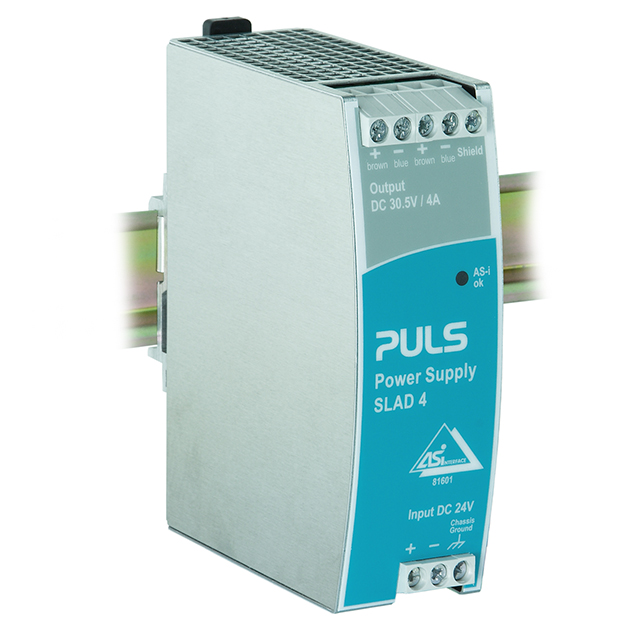

SLAD4.100
ActivePULS, LP
DC/DC DIN RAIL SUPPLY 30.5V 122W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLAD4.100
ActivePULS, LP
DC/DC DIN RAIL SUPPLY 30.5V 122W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLAD4.100 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC, EAC, UL |
| Current - Output (Max) [Max] | 4 A |
| DC Voltage - Input (Max) [Max] | 32.4 V |
| DC Voltage - Input (Min) [Min] | 18 V |
| Efficiency | 90.5 % |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 122 W |
| Size / Dimension [x] | 102 mm |
| Size / Dimension [x] | 4.02 in |
| Size / Dimension [y] | 49 mm |
| Size / Dimension [y] | 1.93 in |
| Size / Dimension [z] | 124 mm |
| Size / Dimension [z] | 4.88 " |
| Standard Number | 60950-1, 508 |
| Voltage - Output 1 | 30.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 787.50 | |
Description
General part information
SLAD4 Series
DC/DC DIN RAIL SUPPLY 30.5V 122W
