MXFR01JA1000
ActiveMurata Power Solutions Inc.

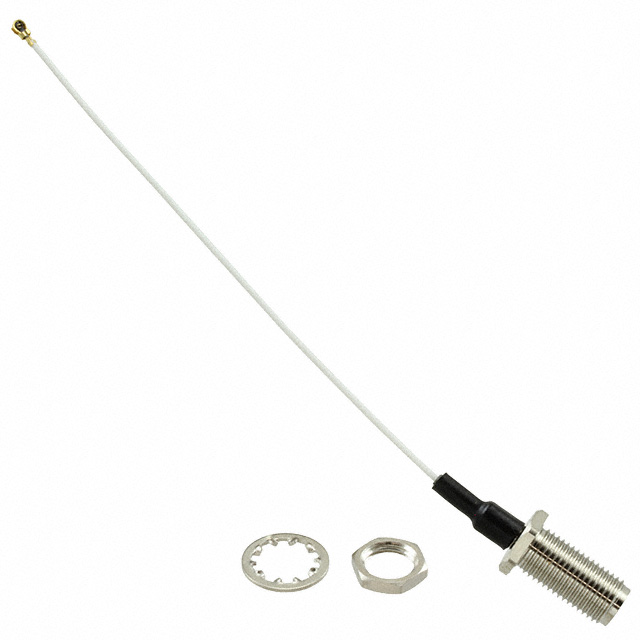

CBL ASSY SMA-JSC JCK-JCK 3.937"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MXFR01JA1000
ActiveMurata Power Solutions Inc.
CBL ASSY SMA-JSC JCK-JCK 3.937"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MXFR01JA1000 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | JSC Jack, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Coaxial Cable |
| Cable Type [diameter] | 0.81 mm |
| Color | White |
| Features | Shielded |
| Frequency - Max [Max] | 12 GHz |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to JSC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 23.82 | |
| 10 | $ 20.86 | |||
| 25 | $ 19.96 | |||
| 50 | $ 19.31 | |||
| 100 | $ 18.67 | |||
| 250 | $ 17.64 | |||
| 500 | $ 17.12 | |||
Description
General part information
MXFR01 Series
Cable Assembly Coaxial SMA to JSC 0.81mm OD Coaxial Cable 3.937" (100.00mm)
