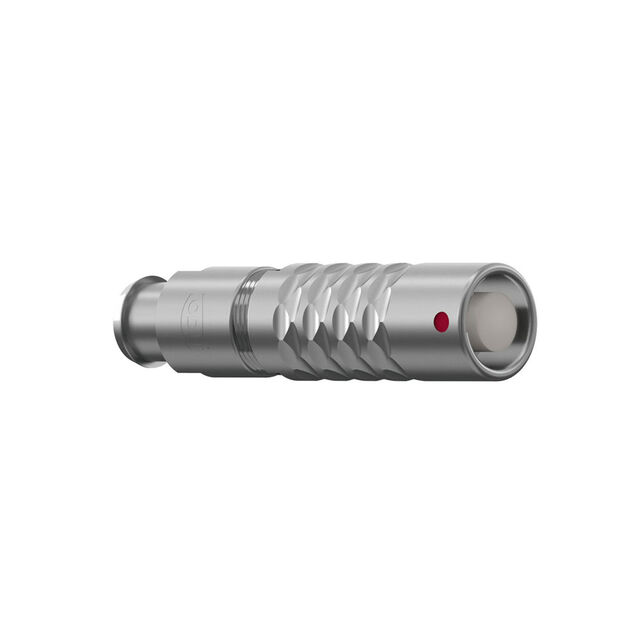

K24L0C-P30LJG0-130S

Active

ODU

ODU MINI-SNAP RCEPT, INLINE, STY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K24L0C-P30LJG0-130S

Active

ODU

ODU MINI-SNAP RCEPT, INLINE, STY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K24L0C-P30LJG0-130S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [diameter]	0.512 in
Cable Opening [Max] [diameter]	13 mm
Cable Opening [Min] [diameter]	0.472 in
Cable Opening [Min] [diameter]	12 mm
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	30
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	4
Shielding	Unshielded
Voltage Rating	520 V

K24L0C-P Series

Part	Ingress Protection	Connector Type	Applications	Number of Positions	Backshell Material, Plating	Contact Material	Features	Contact Finish - Mating	Color	Fastening Type	Shell Finish	Primary Material	Current Rating (Amps)	Shell Size - Insert	Mounting Type	Insert Material	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shielding	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
ODU K24L0C-P30LJG0-130S	IP50	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	30	Brass Chrome over Nickel	Brass	Backshell Strain Relief	Gold	Silver	Push-Pull	Chrome over Nickel	Metal	7.5 A	4	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	0.512 in	13 mm	0.472 in	12 mm	Brass	-40 °C	120 °C	520 V	Unshielded
ODU K24L0C-P40LFG0-140S	IP50	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	40	Brass Chrome over Nickel	Brass	Backshell Strain Relief	Gold	Silver	Push-Pull	Chrome over Nickel	Metal	7.5 A	4	Free Hanging (In-Line)	Polyetheretherketone (PEEK)					Brass	-40 °C	120 °C	300 VDC	Unshielded	14 mm	0.512 in	13 mm	0.551 in
ODU K24L0C-P40LFD0-020S	IP50	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	40	Brass Chrome over Nickel	Brass	Backshell Strain Relief	Gold	Silver	Push-Pull	Chrome over Nickel	Metal	6 A	4	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	0.413 in	10.5 mm	0.358 in	9.1 mm	Brass	-40 °C	120 °C	333 V	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 226.19

Description

General part information

K24L0C-P Series

30 Position Circular Connector Receptacle, Female Sockets Solder Cup
