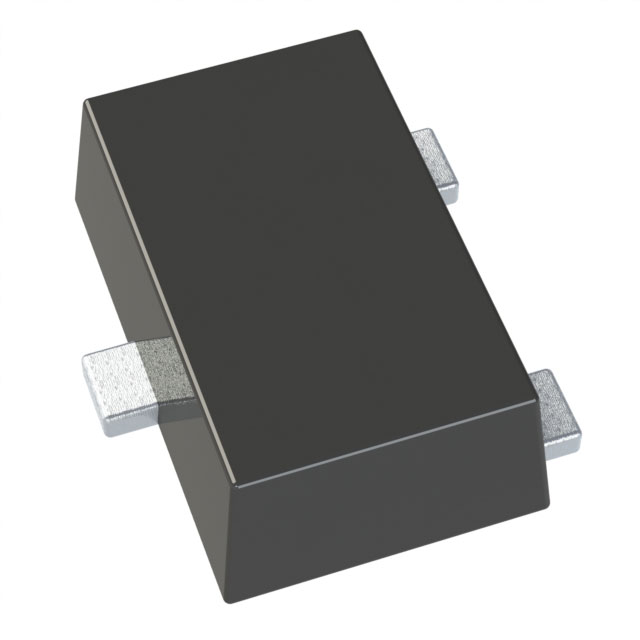

ZXTR2105FF-7

Active

Diodes Inc

LINEAR VOLTAGE REGULATOR, FIXED, POSITIVE, 7 V TO 60 V, 5 V, 15 MA, 3 PINS, SOT-23F

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

ZXTR2105FF-7

Active

Diodes Inc

LINEAR VOLTAGE REGULATOR, FIXED, POSITIVE, 7 V TO 60 V, 5 V, 15 MA, 3 PINS, SOT-23F

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZXTR2105FF-7

Current - Output	89 mA
Current - Supply (Max) [Max]	6.7 mA
Grade	Automotive
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SOT-23-3 Flat Leads
PSRR	46 dB
Qualification	AEC-Q100
Supplier Device Package	SOT-23F
Voltage - Input (Max) [Max]	60 V
Voltage - Output (Min/Fixed)	5 V

ZXTR2105FFQ Series

60V INPUT, 5V 30mA Automotive REGULATOR TRANSISTOR

Part	Supplier Device Package	Qualification	Mounting Type	Voltage - Output (Min/Fixed)	Output Configuration	Grade	Voltage - Input (Max) [Max]	Current - Output	Current - Supply (Max) [Max]	Current - Quiescent (Iq)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Number of Regulators	PSRR
Diodes Inc ZXTR2105F-7	SOT-23-3	AEC-Q101	Surface Mount	5 V	Positive	Automotive	60 V	89 mA	6.7 mA	800 µA	SC-59 SOT-23-3 TO-236-3	-65 ░C	150 °C	1.81 mOhm	1	46 dB
Diodes Inc ZXTR2105FFQ-7	SOT-23F	AEC-Q101	Surface Mount	5 V	Positive	Automotive	60 V	15 mA		6.7 mA	SOT-23-3 Flat Leads	-65 °C	150 °C	1.81 mOhm	1	46 dB
Diodes Inc ZXTR2105FF-7	SOT-23F	AEC-Q100	Surface Mount	5 V	Positive	Automotive	60 V	89 mA	6.7 mA		SOT-23-3 Flat Leads	-65 °C	150 °C	1.81 mOhm	1	46 dB
Diodes Inc ZXTR2105FQ-7	SOT-23-3	AEC-Q101	Surface Mount	5 V	Positive	Automotive	60 V	89 mA	6.7 mA	800 µA	SC-59 SOT-23-3 TO-236-3	-65 °C	150 °C	1.81 mOhm	1	46 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
		10	$ 0.37
		25	$ 0.33
		100	$ 0.25
		250	$ 0.23
		500	$ 0.19
		1000	$ 0.14
	Digi-Reel®	1	$ 0.45
		10	$ 0.37
		25	$ 0.33
		100	$ 0.25
		250	$ 0.23
		500	$ 0.19
		1000	$ 0.14
	Tape & Reel (TR)	3000	$ 0.10
		6000	$ 0.10
Newark	Each (Supplied on Cut Tape)	1	$ 0.60
		10	$ 0.32
		25	$ 0.28
		50	$ 0.23
		100	$ 0.19
		250	$ 0.18
		500	$ 0.17
		1000	$ 0.17

Description

General part information

ZXTR2105FFQ Series

The ZXTR2105FF monolithically integrates a transistor, Zener diode and resistor to function as a linear regulator. The device regulates with a 5V nominal output at 15mA. It is designed for use in high voltage applications where standard linear regulators cannot be used. This function is fully integrated into a SOT23F package, minimizing PCB area and reducing number of components when compared with a multi-chip discrete solution.
