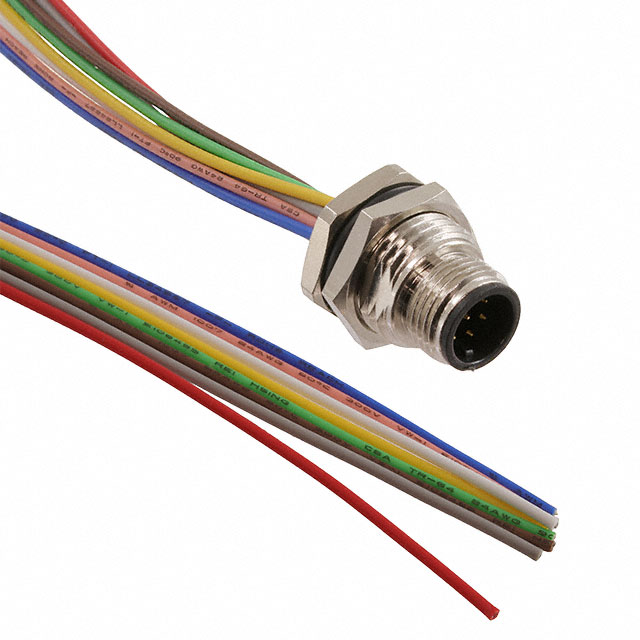

MPM12A08I06AR03

Active

MH Connectors

SENSOR CORD, M12 PLUG-FREE END, 152.4MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +2

MPM12A08I06AR03

Active

MH Connectors

SENSOR CORD, M12 PLUG-FREE END, 152.4MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPM12A08I06AR03

1st Connector Gender	Male Pins
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Individual
Color	Multiple
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Shielding	Unshielded
Usage	Industrial Environments

MPM12A0 Series

Part	1st Connector Mounting Type	Color	Usage	1st Connector Gender	1st Connector Type	1st Connector Shell Size - Insert	1st Connector Orientation [custom]	2nd Connector Type	1st Connector Number of Positions Loaded	Assembly Configuration	Ingress Protection	1st Connector Number of Positions	Cable Type	Shielding	Length	Length
MH Connectors MPM12A04I06CF02	Panel Mount	Multiple	Industrial Environments	Male Pins	Receptacle	M12	Keyed	Wire Leads	All	Standard	IP67/IP68 - Dust Tight Waterproof	4	Individual	Unshielded
MH Connectors MPM12A08I12AR03	Panel Mount	Multiple	Industrial Environments	Male Pins	Receptacle	M12	Keyed	Wire Leads	All	Standard	IP67/IP68 - Dust Tight Waterproof	8 positions	Individual	Unshielded	1 ft	304.8 mm
MH Connectors MPM12A08I06AR03	Panel Mount	Multiple	Industrial Environments	Male Pins	Receptacle	M12	Keyed	Wire Leads	All	Standard	IP67/IP68 - Dust Tight Waterproof	8 positions	Individual	Unshielded
MH Connectors MPM12A04I12AF02	Panel Mount	Multiple	Industrial Environments	Male Pins	Receptacle	M12	Keyed	Wire Leads	All	Standard	IP67/IP68 - Dust Tight Waterproof	4	Individual	Unshielded	1 ft	304.8 mm
MH Connectors MPM12A04I12CR02	Panel Mount	Multiple	Industrial Environments	Male Pins	Receptacle	M12	Keyed	Wire Leads	All	Standard	IP67/IP68 - Dust Tight Waterproof	4	Individual	Unshielded	1 ft	304.8 mm
MH Connectors MPM12A05I06CR02	Panel Mount	Multiple	Industrial Environments	Male Pins	Receptacle	M12	Keyed	Wire Leads	All	Standard	IP67/IP68 - Dust Tight Waterproof	5	Individual	Unshielded
MH Connectors MPM12A05I06AF02	Panel Mount	Multiple	Industrial Environments	Male Pins	Receptacle	M12	Keyed	Wire Leads	All	Standard	IP67/IP68 - Dust Tight Waterproof	5	Individual	Unshielded
MH Connectors MPM12A04I12AF01	Panel Mount	Multiple	Industrial Environments	Male Pins	Receptacle	M12	Keyed	Wire Leads	All	Standard	IP67/IP68 - Dust Tight Waterproof	4	Individual	Unshielded	1 ft	304.8 mm
MH Connectors MPM12A05I12CF01	Panel Mount	Multiple	Industrial Environments	Male Pins	Receptacle	M12	Keyed	Wire Leads	All	Standard	IP67/IP68 - Dust Tight Waterproof	5	Individual	Unshielded	1 ft	304.8 mm
MH Connectors MPM12A05I12AR01	Panel Mount	Multiple	Industrial Environments	Male Pins	Receptacle	M12	Keyed	Wire Leads	All	Standard	IP67/IP68 - Dust Tight Waterproof	5	Individual	Unshielded	1 ft	304.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 20.91
Newark	Each	1	$ 23.88
		5	$ 22.31
		10	$ 20.73
		25	$ 20.39
		50	$ 20.05
		100	$ 19.17

Description

General part information

MPM12A0 Series

Circular Cable Assembly Unshielded 0.50' (152.40mm)
