5CGXFC5F7M11C8N

Active

Altera

IC FPGA 129 I/O 301MBGA

Search across all available documentation for this part.

Active

Altera

IC FPGA 129 I/O 301MBGA

Technical Specifications

Parameters and characteristics for this part

Specification	5CGXFC5F7M11C8N

Mounting Type	Surface Mount
Number of I/O	129 I/O
Number of LABs/CLBs	29080
Number of Logic Elements/Cells	77000
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	301-TFBGA

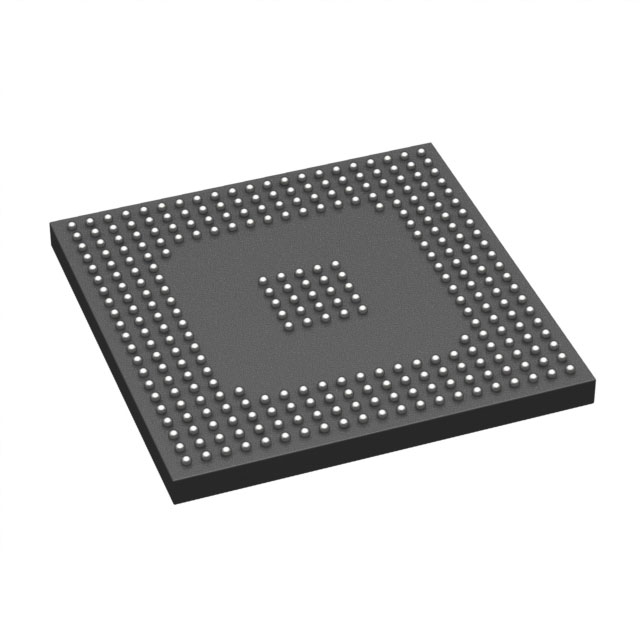

Supplier Device Package	301-MBGA (11x11)
Total RAM Bits	5001216 bits
Voltage - Supply [Max]	1.13 V
Voltage - Supply [Min]	1.07 V

Part	Total RAM Bits	Package / Case	Number of Logic Elements/Cells	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Number of LABs/CLBs	Number of I/O	Mounting Type
Altera 5CGXFC5F6M11C6N	5001216 bits	301-TFBGA	77000	0 °C	85 °C	1.07 V	1.13 V	301-MBGA (11x11)	29080	129 I/O	Surface Mount
Altera 5CGXFC5C6F23I7N	5001216 bits	484-BGA	77000	-40 C	100 °C	1.07 V	1.13 V	484-FBGA (23x23)	29080	240	Surface Mount
Altera 5CGXFC5C6U19C6N	5001216 bits	484-FBGA	77000	0 °C	85 °C	1.07 V	1.13 V	484-UBGA (19x19)	29080		Surface Mount
Altera 5CGXFC5F7M11C8N	5001216 bits	301-TFBGA	77000	0 °C	85 °C	1.07 V	1.13 V	301-MBGA (11x11)	29080	129 I/O	Surface Mount
Altera 5CGXFC5C7F27C8N	5001216 bits	672-BGA	77000	0 °C	85 °C	1.07 V	1.13 V		29080	336	Surface Mount
Altera 5CGXFC5C6F27C7N	5001216 bits	672-BGA	77000	0 °C	85 °C	1.07 V	1.13 V		29080	336	Surface Mount
Altera 5CGXFC5C6M13C7N	5001216 bits	383-TFBGA	77000	0 °C	85 °C	1.07 V	1.13 V	383-MBGA (13x13)	29080	175	Surface Mount
Altera 5CGXFC5C6F23C6N	5001216 bits	484-BGA	77000	0 °C	85 °C	1.07 V	1.13 V	484-FBGA (23x23)	29080	240	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	176	$ 159.85

General part information

Cyclone® V GX Field Programmable Gate Array (FPGA) IC 129 5001216 77000 301-TFBGA
