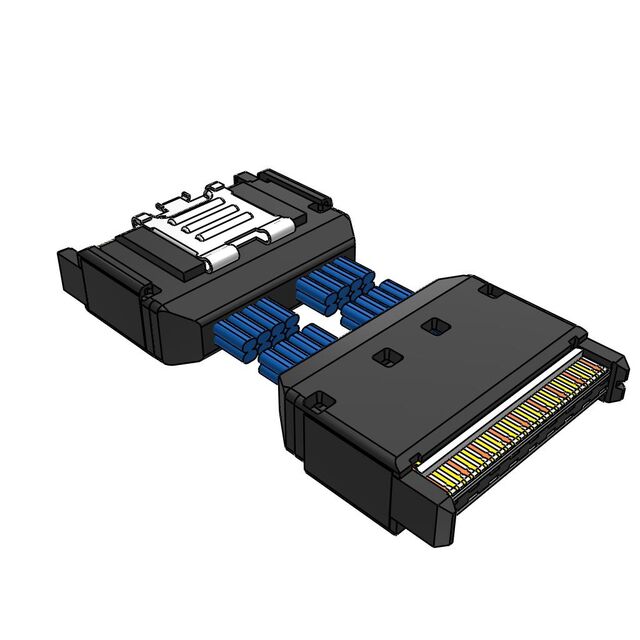

ARC6-16-03.0-LU-LD-2-1

Active

Samtec Inc.

CBL ASS ACCELERATE M-M 16PAIR 3"

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASS ACCELERATE M-M 16PAIR 3"

Technical Specifications

Parameters and characteristics for this part

Specialized Cables AcceleRate Slim Cable Assembly, 0.635 mm Pitch

Part	Gender	Frequency - Max [Max]	Length [x]	Length [x]	Fastening Type	Number of Positions	Cable Type	Shielding	Wire Gauge	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Color	Length [x]	Length	Length	Length
Samtec Inc. ARC6-16-24.0-LU-LD-2-1	Male to Male	56 Gbps	2 '	609.6 mm	Latch Lock	16	Flat Twin Axial	Shielded	34 AWG	Plug to Plug	125 °C	-40 °C	Internal	Blue
Samtec Inc. ARC6-16-06.0-LU-LU-3-1	Male to Male	56 Gbps	0.5 '	152.4 mm	Latch Lock	16	Flat Twin Axial	Shielded	34 AWG	Plug to Plug	125 °C	-40 °C	Internal	Blue	6 "
Samtec Inc. ARC6-16-06.0-LU-LD-2-1	Male to Male	64 Gbps	0.5 '	152.4 mm	Latch Lock	16	Flat Twin Axial	Shielded	34 AWG	Plug to Plug	125 °C	-40 °C	Internal	Blue	6 "
Samtec Inc. ARC6-16-40.0-LU-LU-3-1	Male to Male	56 Gbps	3.33 '	1.02 m	Latch Lock	16	Flat Twin Axial	Shielded	34 AWG	Plug to Plug	125 °C	-40 °C	Internal	Blue
Samtec Inc. ARC6-16-03.0-LU-LD-2-1	Male to Male	56 Gbps			Latch Lock	16	Flat Twin Axial	Shielded	34 AWG	Plug to Plug	125 °C	-40 °C	Internal	Blue		76.2 mm	0.25 ft	3 "
Samtec Inc. ARC6-16-18.0-LU-LD-2-1	Male to Male	56 Gbps	1.5 ft	457.2 mm	Latch Lock	16	Flat Twin Axial	Shielded	34 AWG	Plug to Plug	125 °C	-40 °C	Internal	Blue
Samtec Inc. ARC6-16-12.0-LU-LD-2-1	Male to Male	56 Gbps			Latch Lock	16	Flat Twin Axial	Shielded	34 AWG	Plug to Plug	125 °C	-40 °C	Internal	Blue		304.8 mm	1 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Specialized Cables AcceleRate Slim Cable Assembly, 0.635 mm Pitch
