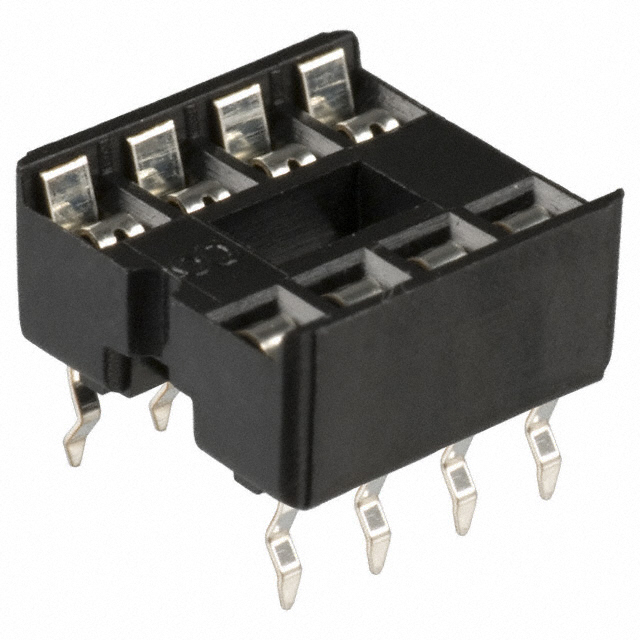

A 08-LC-TR

Active

Assmann WSW Components

CONN IC DIP SOCKET 8POS TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN IC DIP SOCKET 8POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	A 08-LC-TR

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.15 mm
Termination Post Length	0.124 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Features	Housing Material	Contact Material - Post	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Type	Type	Type	Pitch - Post	Pitch - Post	Contact Finish - Post	Contact Material - Mating	Number of Positions or Pins (Grid)	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Resistance	Termination	Mounting Type
Assmann WSW Components A 08-LC-TR	Open Frame	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	85 °C	-55 °C	UL94 V-0	0.3 "	7.62 mm	DIP	2.54 mm	0.1 in	Tin	Phosphor Bronze	8	3.15 mm	0.124 in	1 A	30 mOhm	Solder	Through Hole
Assmann WSW Components A 08-LC-TT	Open Frame	Polybutylene Terephthalate (PBT)	Phosphor Bronze	0.1 in	2.54 mm	85 °C	-55 °C	UL94 V-0	0.3 "	7.62 mm	DIP	2.54 mm	0.1 in	Tin	Phosphor Bronze	8	3.15 mm	0.124 in	1 A	30 mOhm	Solder	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
