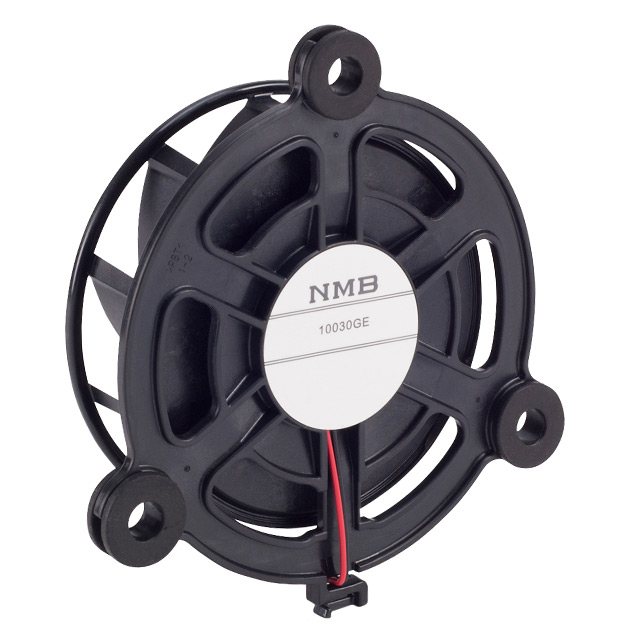

10030GE-12N-YA-F0
ActiveNMB TECHNOLOGIES
FAN AXIAL 100X30MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10030GE-12N-YA-F0
ActiveNMB TECHNOLOGIES
FAN AXIAL 100X30MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10030GE-12N-YA-F0 |
|---|---|
| Air Flow | 37.1 CFM |
| Air Flow | 1.04 mł/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 150 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 35.5 dB |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 1.8 W |
| RPM | 2500 RPM |
| Size / Dimension [diameter] | 100 mm |
| Static Pressure | 49.8 Pa |
| Static Pressure | 0.2 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Width [y] | 30 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.54 | |
| 10 | $ 21.88 | |||
| 25 | $ 20.90 | |||
| 50 | $ 20.19 | |||
Description
General part information
10030GE Series
Fan Tubeaxial 12VDC Round - 100mm Dia Ball 37.1 CFM (1.04m³/min) 2 Wire Leads
