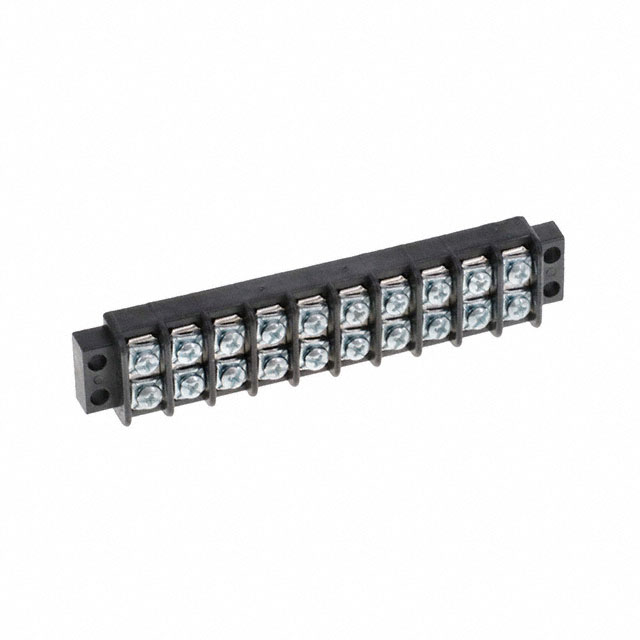

0387800310

Active

Molex

15A 300V BLACK 2X20P DOUBLE-SIDED 14~22 9.53MM BARRIER TERMINAL BLOCKS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0387800310

Active

Molex

15A 300V BLACK 2X20P DOUBLE-SIDED 14~22 9.53MM BARRIER TERMINAL BLOCKS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0387800310

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Color	Black
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	10
Number of Rows	2
Number of Wire Entries	20
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc, Clear Chromate
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

038780 Series

Part	Terminal Block Type	Barrier Type	Mounting Type	Color	Wire Gauge [Min]	Wire Gauge [Max]	Material - Insulation	Material Flammability Rating	Pitch [x]	Pitch [x]	Number of Wire Entries [custom]	Terminal Screw Material	Voltage Rating	Current Rating (Amps)	Bottom Termination	Terminal Screw Finish	Top Termination	Number of Circuits	Number of Rows	Features	Number of Wire Entries
Molex 0387800211	Barrier Block	2 Wall (Dual)	Chassis Panel	Black	14 AWG	22 AWG	Thermoplastic	UL94 V-0	11.12 mm	0.438 in	22	Brass	300 VDC	15 A	Closed	Nickel	Screws	11	2	Flange
Molex 0387800110	Barrier Block	2 Wall (Dual)	Chassis Panel	Black	14 AWG	22 AWG	Thermoplastic	UL94 V-0	11.12 mm	0.438 in		Steel	300 VDC	15 A	Closed	Clear Chromate Zinc	Screws	10	2	Flange	20
Molex 0387800107	Barrier Block	2 Wall (Dual)	Chassis Panel	Black	14 AWG	22 AWG	Thermoplastic	UL94 V-0	11.12 mm	0.438 in		Steel	300 VDC	15 A	Closed	Clear Chromate Zinc	Screws	7	2	Flange	14
Molex 0387800305	Barrier Block	2 Wall (Dual)	Chassis Panel	Black	14 AWG	22 AWG	Thermoplastic	UL94 V-0	11.12 mm	0.438 in		Steel	300 VDC	15 A	Closed	Clear Chromate Zinc	Screws with Captive Plate	5	2	Flange	10
Molex 0387800116	Barrier Block	2 Wall (Dual)	Chassis Panel	Black	14 AWG	22 AWG	Thermoplastic	UL94 V-0	11.12 mm	0.438 in		Steel	300 VDC	15 A	Closed	Clear Chromate Zinc	Screws	16	2	Flange	32
Molex 0387801103	Barrier Block	2 Wall (Dual)	Chassis Panel	Black	14 AWG	22 AWG	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	11.12 mm	0.438 in		Steel	300 VDC	15 A	Solder Tab	Clear Chromate Zinc	Screws	3	1	Flange	3
Molex 0387800310	Barrier Block	2 Wall (Dual)	Chassis Panel	Black	14 AWG	22 AWG	Thermoplastic	UL94 V-0	11.12 mm	0.438 in		Steel	300 VDC	15 A	Closed	Clear Chromate Zinc	Screws with Captive Plate	10	2	Flange	20
Molex 0387800130	Barrier Block	2 Wall (Dual)	Chassis Panel	Black	14 AWG	22 AWG	Thermoplastic	UL94 V-0	11.12 mm	0.438 in		Steel	300 VDC	15 A	Closed	Clear Chromate Zinc	Screws	30	2	Flange	60
Molex 0387800106	Barrier Block	2 Wall (Dual)	Chassis Panel	Black	14 AWG	22 AWG	Thermoplastic	UL94 V-0	11.12 mm	0.438 in		Steel	300 VDC	15 A	Closed	Clear Chromate Zinc	Screws	6	2	Flange	12
Molex 0387800307	Barrier Block	2 Wall (Dual)	Chassis Panel	Black	14 AWG	22 AWG	Thermoplastic	UL94 V-0	11.12 mm	0.438 in		Steel	300 VDC	15 A	Closed	Clear Chromate Zinc	Screws with Captive Plate	7	2	Flange	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.15
		10	$ 4.06
		25	$ 3.86
		50	$ 3.51
		120	$ 3.49
LCSC	N/A	1	$ 0.00

Description

General part information

038780 Series

10 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate
